EX42917-3 - Hardened Unmanaged Gigabit Ethernet Switch (7-port 10/100/1000BASE-T +1-port 1000BASE-SX (SC) - 550m

EX42917-3

HARDENED UNMANAGED 7-PORT 10/100/1000BASE-T + 1-PORT FIBER OPTICAL 1000BASE-SX (SC) - 550M

EtherWAN's EX42917-3 is a compact hardened unmanaged gigabit switching platform, designed for easy deployment in harsh environments. The EX42917-3 is equipped with 7-port 10/100/1000BASE-T plus 1-fiber port 1000BASE-SX (SC) - 550m, for long distance connectivity.

Although unmanaged, the EX42900 series is feature-rich with Jumbo Frame support, full wire speed Gigabit throughput, QoS support and eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet) compliant, making the EX32900 Series a powerful yet energy efficient network switch.

• Hardened grade, DIN Rail mounted
• Supports -40 to 75°C (-40 to 167°F) operating temperature
• Palm size, full gigabit switch
• Fanless Design
• No moving parts

Casing
Metal case
IP30

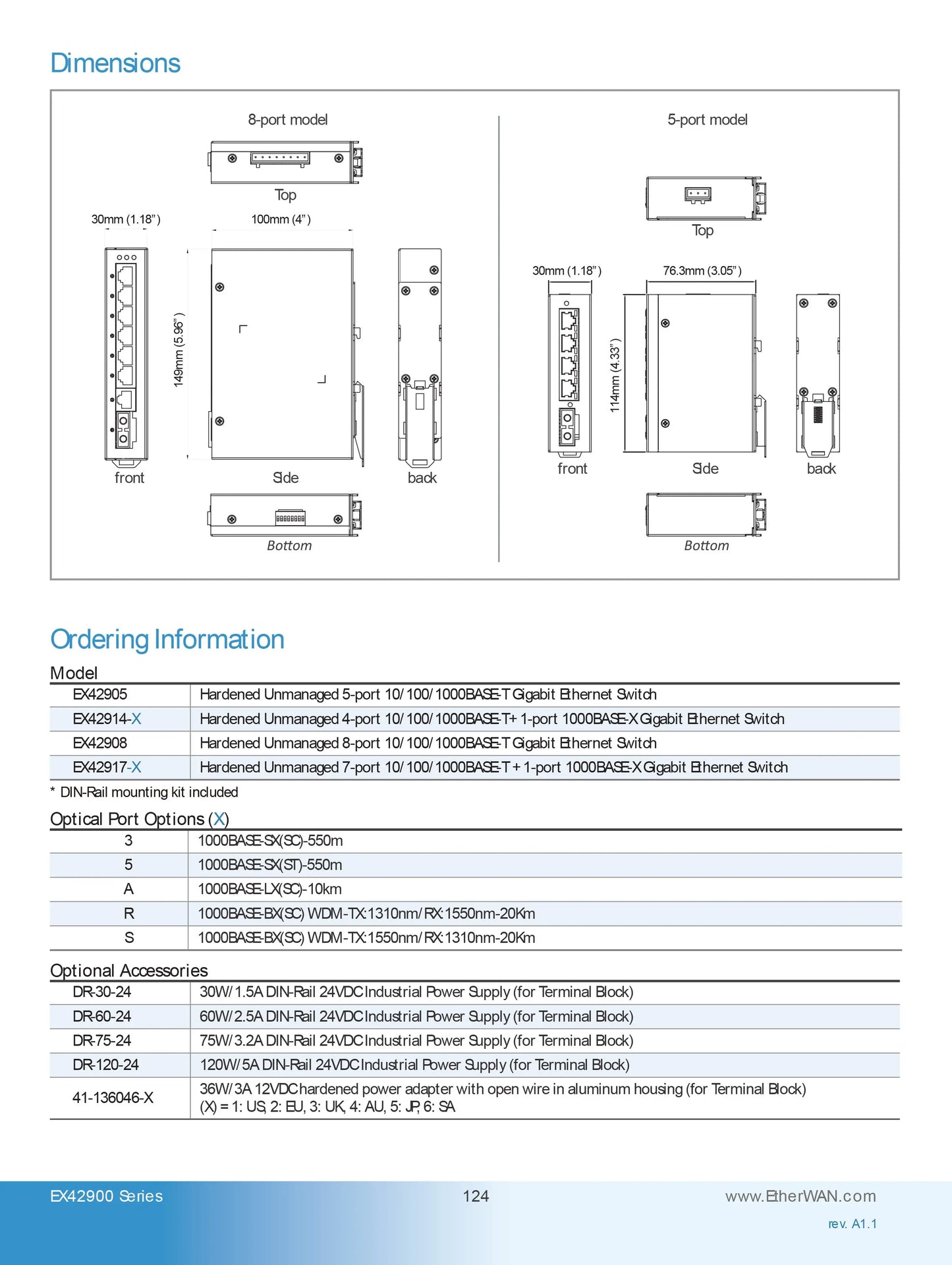

Dimensions
30mm x 100mm x 149mm (W x D x H)
(1.18" x 4" x 5.96")

Weight
0.39Kg (0.84lb.)

Installation
• DIN-Rail (Top hat type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here
