EX45905 - Hardened Unmanaged Gigabit Ethernet Switch 5-port 10/100/1000BASE-T (4 x PoE) Power Over Ethernet

EX45905

HARDENED UNMANAGED 5-PORT 10/100/1000BASE-T (4 x PoE) POWER OVER ETHERNET

EtherWAN's EX45905 provides a hardened 5-port switching platform supporting IEEE 802.3at Power over Ethernet, high performance switching with robust features required for mission-critical and harsh environments where sustained connectivity is crucial.

The EX45900 Series is equipped with (5) 10/100/1000BASE-T gigabit ports. The first 4 ports are PoE ports that provide power up to 30W.

The EX45905 is feature rich with 10K Jumbo Frame support, full wire speed Gigabit throughput, QoS support and eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet) compliant, making the EX45900 Series a powerful yet energy efficient network switch. The IEEE 802.3at PoE ports provide up to 30W/port with a total power budget of 120W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as: outdoor PTZ dome cameras, wireless access points, and way-side communication devices.

• Port 1-4 are PoE ports that provide power up to 30W
• 120W total power budget
• Supports -40 to 75°C (-40 to 167°F) operating temperature
• Supports DIN-Rail mounting
• Supports IEEE 802.3az standard

Casing
Metal case
IP30

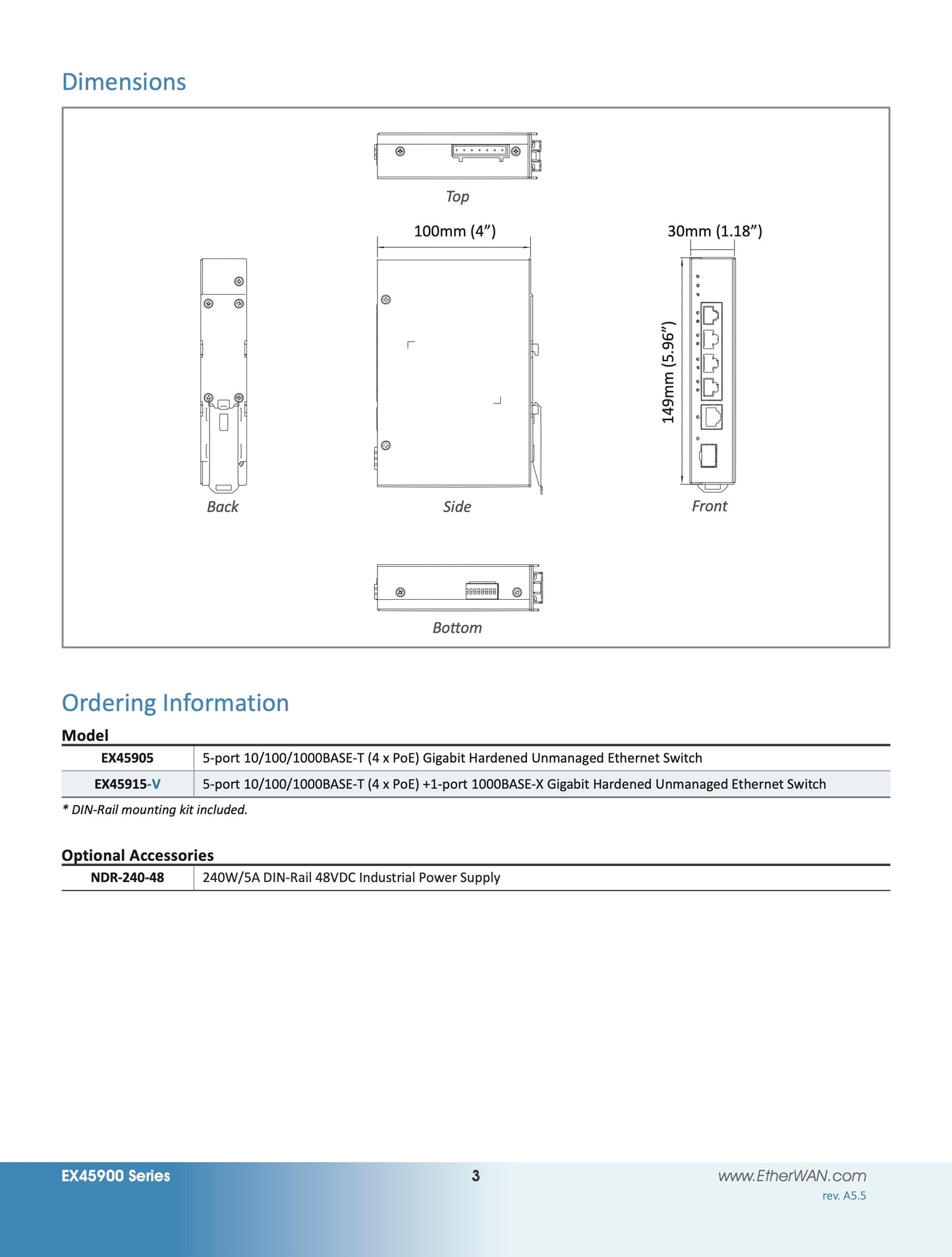

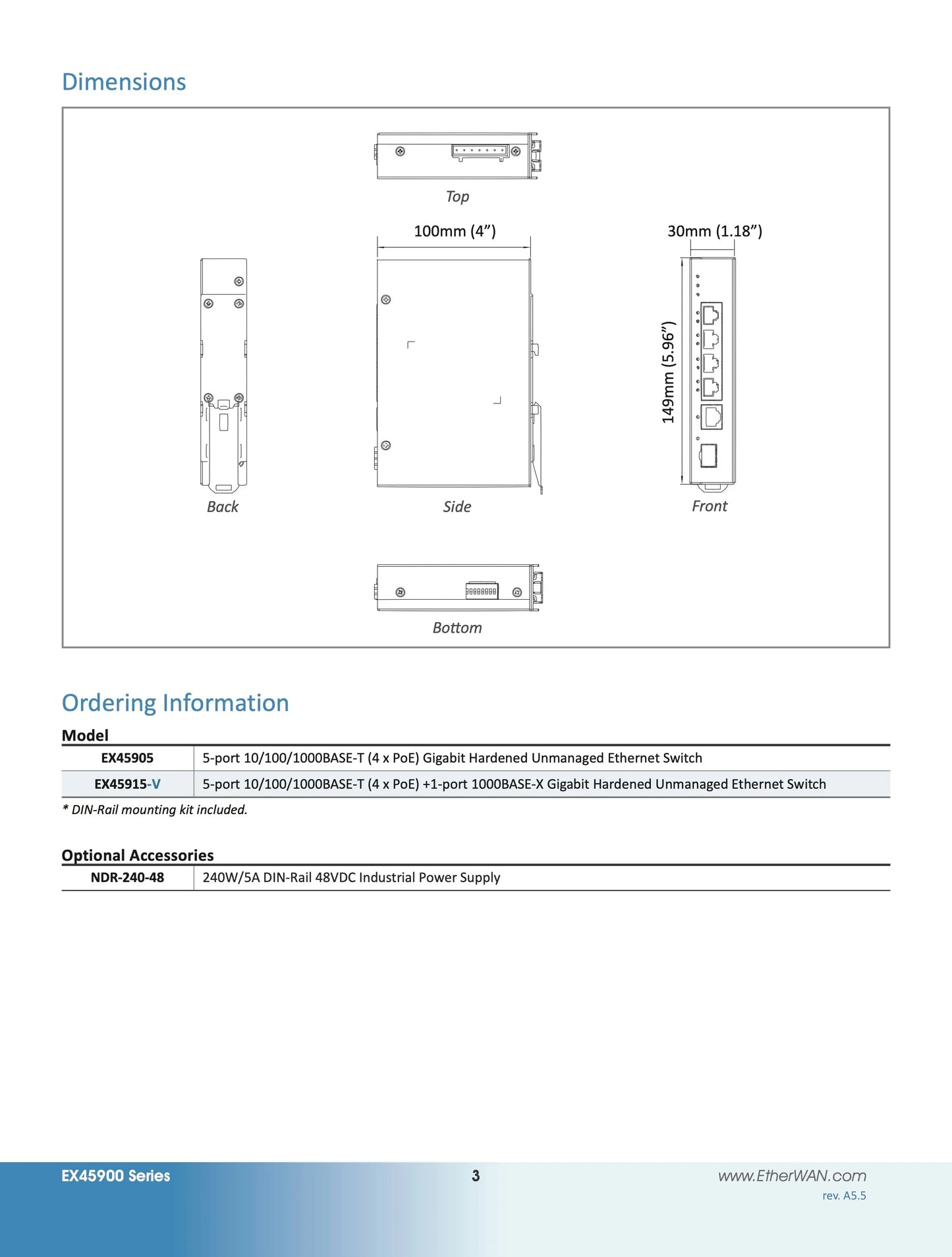

Dimensions
30mm x 100mm x 149mm (W x D x H)
(1.18" x 4" x 5.96")

Weight
0.34Kg (0.75lb.)

Installation
• DIN-Rail (Top hat type 35mm)

Click here for additional information

For detailed specifications, download the datasheet here
