EX46910 - Hardened Unmanaged 8-Port Gigabit PoE and 2-Port Gigabit RJ45/SFP Combo Ethernet Switch

EX46910

EtherWAN’s EX46910 is a compact hardened unmanaged DIN-rail mounted PoE switch. The (8) gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. 2 combo uplink ports provide flexibility for data transmission and cascading. The EX46910 provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks where connectivity is crucial.

• Hardened-grade for non-ventilated and harsh environments
• Up to 30W power output for PTZ cameras and other security applications
• Combo RJ45/SFP uplink ports provide flexibility for data transmission
• Total PoE power budget of 240W available
• Backward compatible with 802.3af devices
• High impact, thermal shock, and electrical noise resistance
• Operating Temperature: -40 to 167°F (-40 to 75°C)
• Fanless operation

Casing Material
Aluminum

IP Rating
IP30

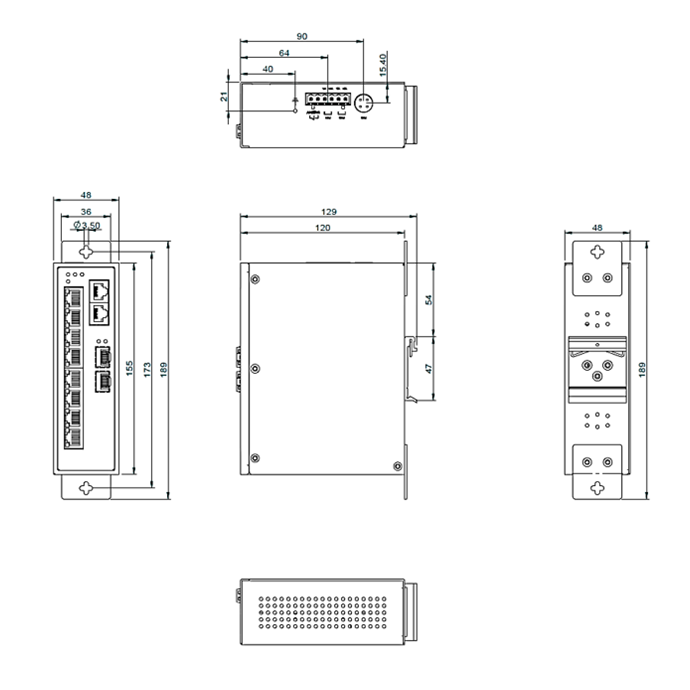

Dimensions
1.89” x 4.72” x 6.1” (W x D x H)
48mm x 120mm x 155mm

Weight
1 lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
