EX46910 : Industrial PoE Switch : 8-Port Gigabit Ethernet SFP Combo

EX46910 : Industrial PoE Switch

EtherWAN EX46910 industrial PoE switch is a compact, hardened, unmanaged DIN-rail mounted PoE switch. The (8) gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. The (2) combo uplink ports (RJ45 or SFP fiber) provide flexibility for data transmission and cascading.

The EX46910 industrial PoE switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the EX46910 is designed to operate at -40°F to 167°F in harsh environments, where high ESD, shock, and vibration may be present.

• (8) gigabit PoE ports
• (2) combo uplink ports (RJ45 or SFP fiber)
• Hardened-grade for non-ventilated and harsh environments
• Up to 30W power output for PTZ cameras and other security applications

• Total PoE power budget of 240W available
• Backward compatible with 802.3af devices
• Combo RJ45/SFP uplink ports provide flexibility for data transmission
• High impact, thermal shock, and electrical noise resistance
• Hardened operating temperature -40 to 167°F (-40 to 75°C)
• Fanless operation

Casing Material
Aluminum

IP Rating
IP30

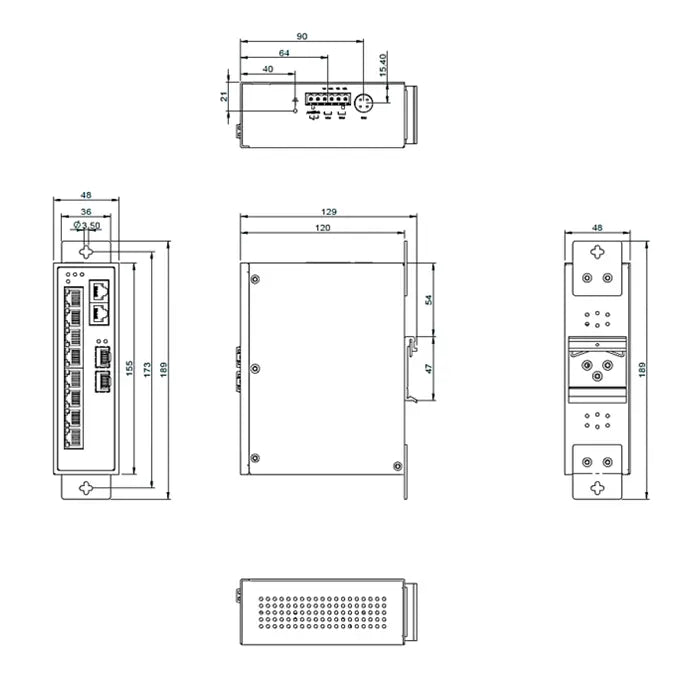

Dimensions
1.89” x 4.72” x 6.1” (W x D x H)
48mm x 120mm x 155mm

Weight
1 lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
