EX46910F - Hardened Unmanaged 8-Port Gigabit PoE & 2-Port Gigabit SFP Ethernet Switch

EX46910F

EtherWAN’s EX46910F is a compact hardened unmanaged flat form factor PoE switch which can be wall or DIN-rail mounted. The (8) gigabit PoE ports provide up to 30W output per port with a PoE power budget of 240W, ensuring that the maximum possible power is delivered to every device at all times. 2 SFP uplink ports provide flexibility for data transmission and cascading. The EX46910F provides the power required to support various security and other network applications, along with flexibility, speed, and reliability to support networks.

• Hardened-grade for non-ventilated and harsh environments
• Up to 30W output per port for various security, LED lighting, and other applications

• Total PoE power budget of 240W available
• Backward compatible with 802.3af devices
• High impact, thermal shock, and electrical noise resistance
• Operating Temperature: -40 to 167°F (-40 to 75°C)
• Fanless operation

Casing Material
Aluminum

IP Rating
IP30

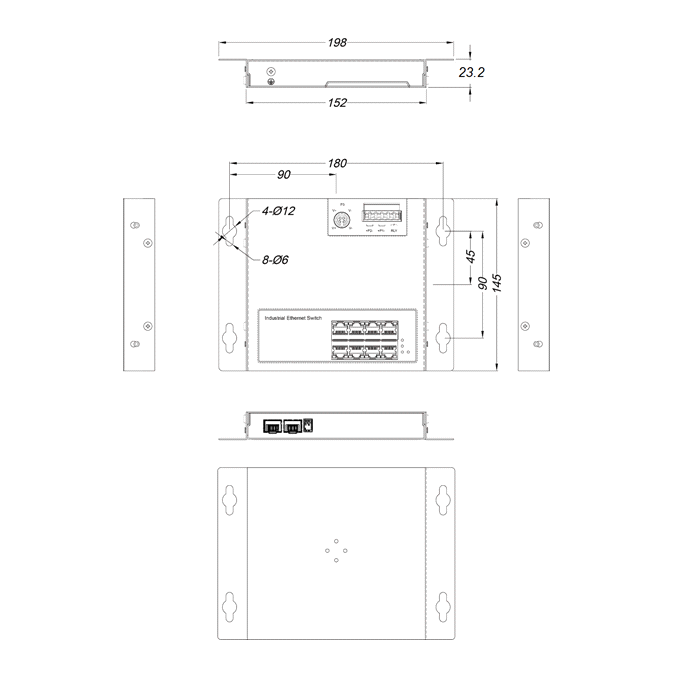

Dimensions
5.7" x 0.91" x 7.8" (W x D x H)
145mm x 23.2mm x 198mm

Weight
1.0lbs (0.45kg)

Installation Type
DIN-rail or wall/panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
