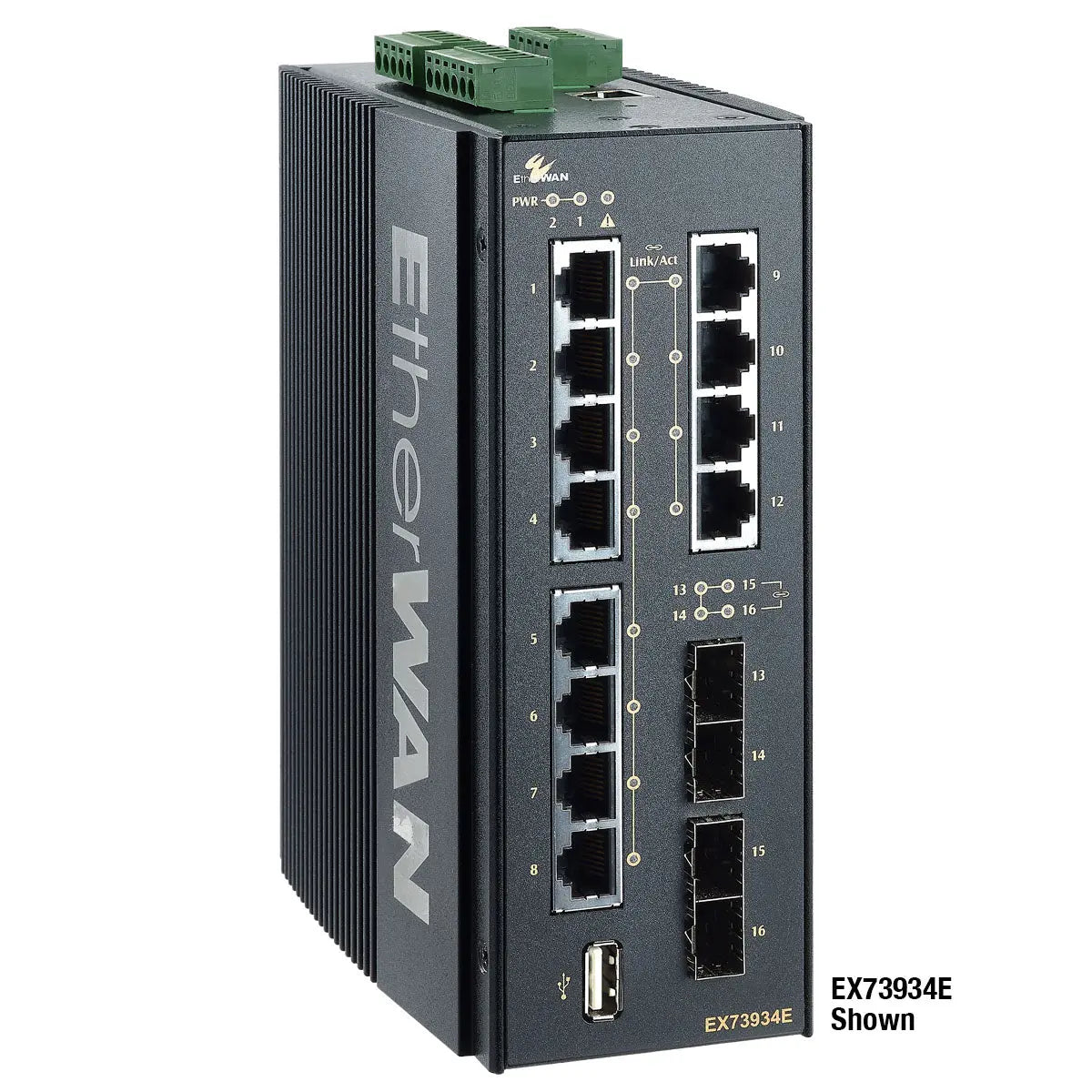

EX73924E-0VB : Industrial Ethernet Switch Managed Hardened Gigabit

EX73924E-0VB : Industrial Ethernet Switch

EtherWAN's EX73924E-0VB industrial ethernet switch is a managed, hardened, DIN-rail mounted, gigabit switch. It is equipped with a total of 12-ports — (8) gigabit ports and (4) dual-rate gigabit SFP fiber ports.

The EX73924E-0VB industrial ethernet switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the EX73924E-0VB is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

• (8) 10/100/1000BASE-T(X) ports for high bandwidth connections
• (4) Dual-rate 100/1000BASE SFP uplink ports for fiber connections
• IP40 protection level
• Integrated with 2 DIs (Digital Input) and 2 Relay Output
• Static routing, RIP v1/v2, and OSPF support
• Full capacity switching running at full duplex
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Redundancy with VRRP
• Reduces amount of broadcast traffic
• IEC 61850-3/IEEE 1613 certified for power substations
• NEMA TS2 rated
• UL certified for safety
• Port control
• Dying gasp feature provides SNMP trap upon power off
• Configure and monitor with eVue™ and eLite™ network management tools

Casing Material
Aluminum

IP Rating
IP40

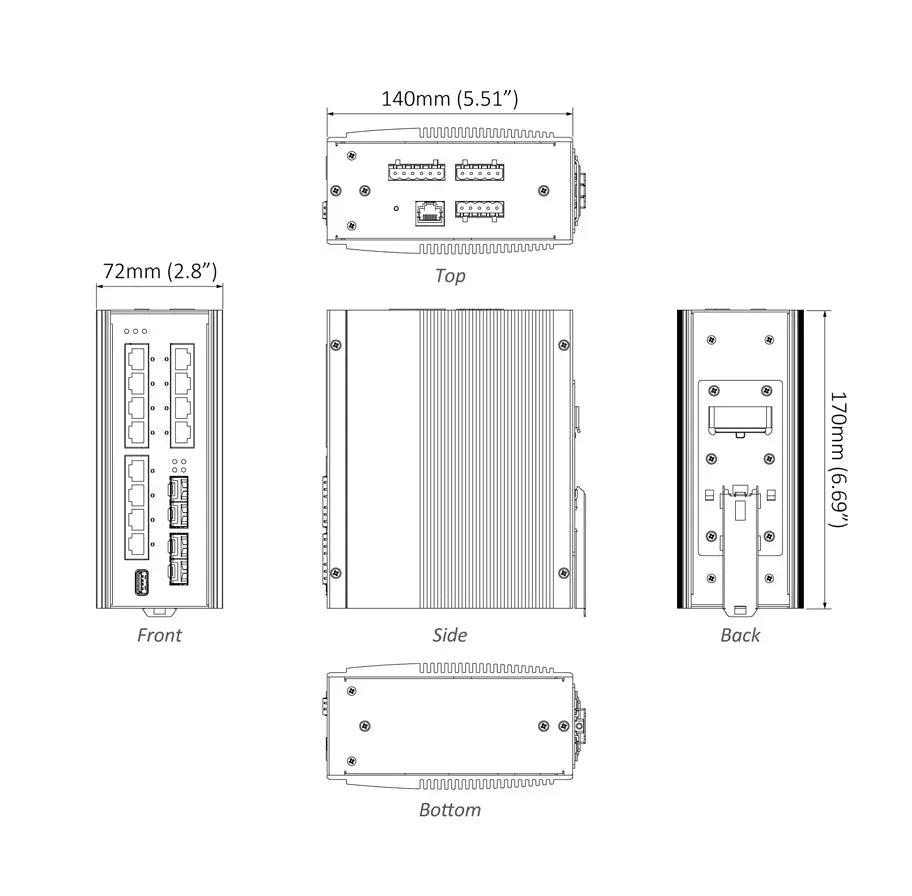

Dimensions
72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"

Weight
1.4kg (3.08lbs)

Installation Type
DIN-rail mounting

Click here for additional information

For detailed specifications, download the datasheet here
