EtherWAN's EX73934E-0VB is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with 12 gigabit Ethernet and 4 dual-rate gigabit SFP ports, the EX73934E-0VB provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.
The EX73934E-0VB is equipped with (12) x 10/100/1000 BASE-T RJ45 ports, in combination with 4 dual-rate gigabit SFP ports. It features full wire layer 3 switching and users are able to access management features such as dying gasp, RADIUS and TACACS+ remote user authentication, port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via various interfaces. Compliance for various applications: IEC 61850-3/IEEE 1613 for power substations, EN 50121-4 for rail, and NEMA-TS2 for traffic.
With hardened specifications, the EX73934E-0VB is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.
- (12) 10/100/1000BASE-T(X) ports for high bandwidth connections
- (4) Dual-rate 100/1000BASE SFP uplink ports for fiber connections
- IP40 protection level
- Integrated with 2 DIs (Digital Input) and 2 Relay Output
- Static routing, RIP v1/v2, and OSPF support
- Full capacity switching running at full duplex
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
- Redundancy with VRRP
- Reduces amount of broadcast traffic
- IEC 61850-3/IEEE 1613 certified for power substations
- NEMA TS2 rated
- UL certified for safety
- Port control
- Dying gasp feature provides SNMP trap upon power off
- Configure and monitor with eVue™ and eLite™ network management tools
Casing Material
Aluminum
IP Rating
IP40

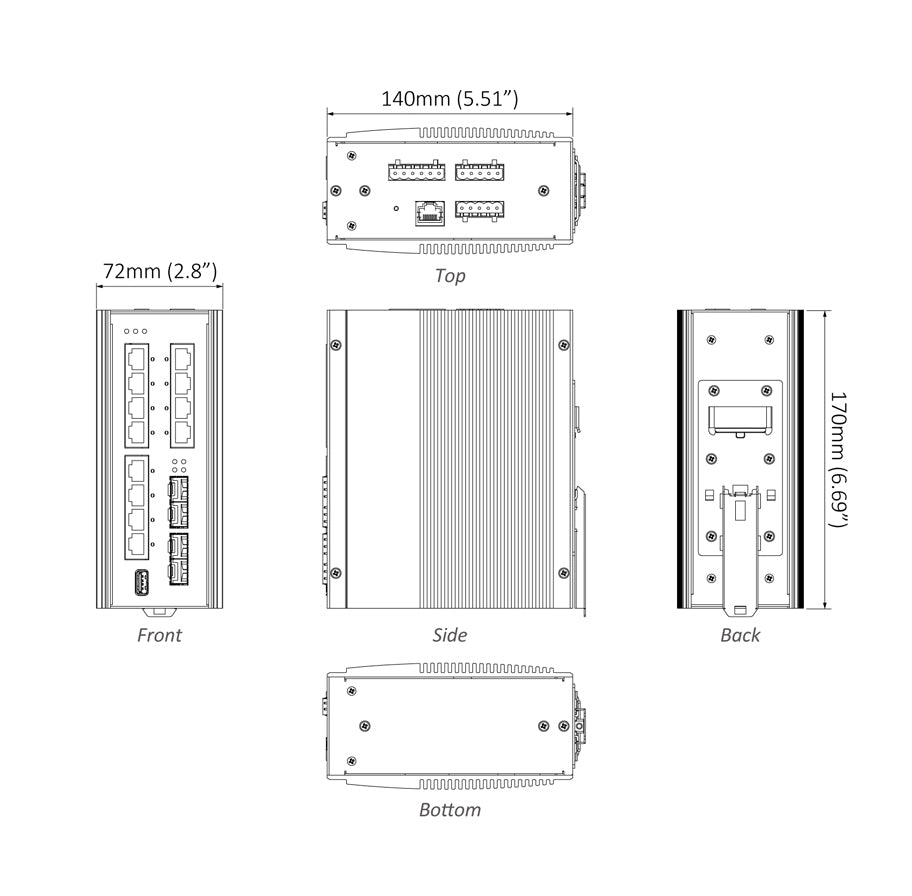

Dimensions
72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"
Weight
1.4kg (3.08lbs)
Installation Type
DIN-rail mounting
Click here for additional information
For detailed specifications, download the datasheet here
