EX73934X-0VB - Hardened Managed 16-Port Gigabit Ethernet Switch (12-Port 10/100/1000BASE-T + 4 1G/10G SFP+ Ports)

EX73934X-0VB - Hardened Managed 16-Port Gigabit Ethernet Switch (12-Port 10/100/1000BASE-T + 4 1G/10G SFP+ Ports)

SKU:EX73934X-0VB

Regular price $2,980.61 USD
Regular price Sale price $2,980.61 USD
Sale Sold out

EX73934X-0VB

EtherWAN's EX73934X-0VB is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with 12 gigabit Ethernet and 4 dual-rate 10-gigabit SFP+ ports, the EX73934X-0VB provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.

The EX73934X-0VB is equipped with (12) x 10/100/1000 BASE-T RJ45 ports, in combination with 4 dual-rate 10-gigabit SFP+ ports. It features full wire layer 3 switching and users are able to access management features such as dying gasp, RADIUS and TACACS+ remote user authentication, port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via various interfaces. Compliance for various applications: IEC 61850-3/IEEE 1613 for power substations, EN 50121-4 for rail, and NEMA-TS2 for traffic.

With hardened specifications, the EX73934X-0VB is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

  • (12) 10/100/1000BASE-T(X) ports for high bandwidth connections
  • (4) Dual-rate 10-gigabit SFP+ uplink ports for fiber connections
  • IP40 protection level
  • Integrated with 2 DIs (Digital Input) and 2 Relay Output
  • Static routing, RIP v1/v2, and OSPF support
  • Full capacity switching running at full duplex
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic
  • IEC 61850-3/IEEE 1613 certified for power substations
  • NEMA TS2 rated
  • UL certified for safety
  • Port control
  • Dying gasp feature provides SNMP trap upon power off
  • Configure and monitor with eVue™ and eLite™ network management tools

Casing Material
Aluminum

IP Rating
IP40

Dimensions

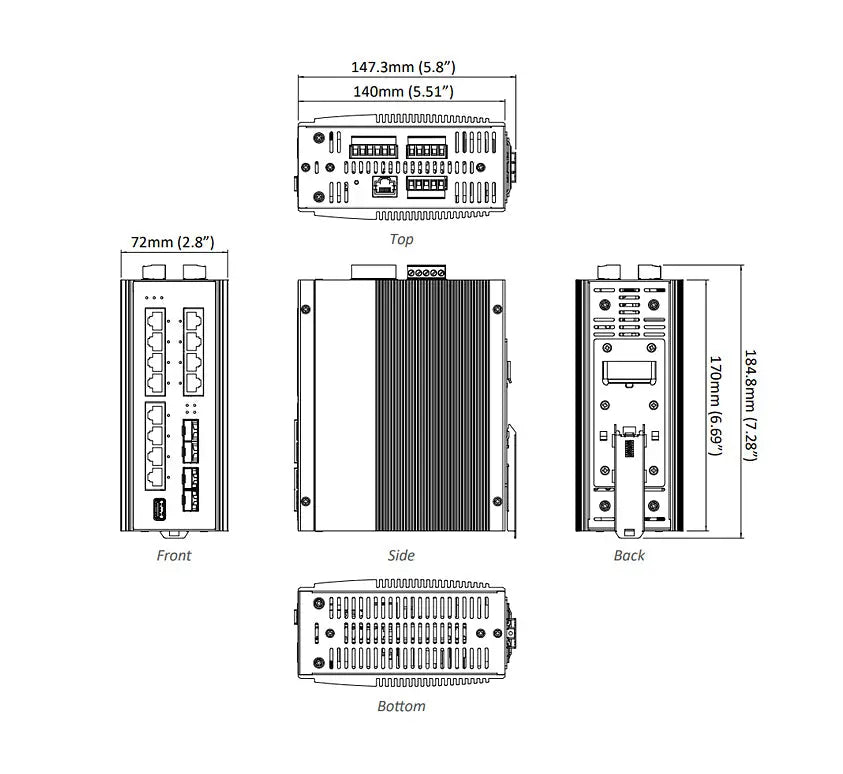

72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"

Weight
1.4kg (3.08lbs)

Installation Type
DIN-rail mounting

Click here for additional information

11 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Managed
POWER INPUT: 12-48VDC Redundant (Terminal block)
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail
LAYER 3: Yes
POE TYPE: None
REDUNDANT POWER: Yes
10/100/1000 PORTS: 12
10 GIG PORTS: Yes
FIBER TYPE: 1000MB SFP, 10Gig SFP+
FIBER PORTS: 4
FIBER/SFP CONNECTOR: SFP+
FIBER DISTANCE: SFP+ (Various distances)
INDUSTRY STANDARDS: EN 50121-4, IEC 61850, IEEE 1613, NEMA-TS2, UL 61010
ROUTING PROTOCOLS: OSPF v2, RIP v1 & v2, Static Routing, VRRP
