EX75964-0VTU - Hardened Managed 28-Port Gigabit Ethernet Switch (24-port 10/100/1000BASE-T(X) PoE + 4-port 1G/10G SFP+)

EX75964-0VTU - Hardened Managed 28-Port Gigabit Ethernet Switch (24-port 10/100/1000BASE-T(X) PoE + 4-port 1G/10G SFP+)

SKU:EX75964-0VTU

Regular price $4,258.02 USD
Regular price Sale price $4,258.02 USD
Sale Sold out

EX75964-0VTU

EtherWAN's EX75964-0VTU is a hardened rack-mounted 28-port Gigabit switching platform. It features 60W PoE combined with robust management features required for mission-critical and harsh environments where sustained connectivity is crucial.

The EX75964-0VTU is equipped with 24 x 10/100/1000 BASE-T PoE ports, in combination with 4 dual-rate 10-gigabit SFP+ ports. The PoE ports provide up to 60W/port with a total power budget of 720W, making the switch truly versatile to connect with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as outdoor PTZ dome cameras, wireless access points, PoE LED lights, and way-side communication devices. Available PoE features allow for more installation scenarios and less truck rolls. These include a long distance PoE mode which extends the maximum installation distance to 820ft and PoE watchdog which can automatically power cycle the port for which the connected device is not operating normally. Users are able to access management features such as RADIUS and TACACS+ remote user authentication, port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via various interfaces. SFP uplink ports are capable of delivering up to 10-gigabit speeds, providing sufficient bandwidth for connected devices.

With hardened specifications, the EX75964-0VTU is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

  • (24) 10/100/1000BASE-T(X) ports for High bandwidth connections
  • (4) 1G/10G SFP+ uplink ports for fiber connections
  • Full capacity switching running at full duplex
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance
  • Static routing, RIP v1/v2, and OSPF
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic
  • IEEE 802.3bt with 60W; 720W Power budget
  • PoE watchdog monitors status of connected PoE devices
  • Port control
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Configure and monitor with eVue™ and eLite™

Casing Material
Metal

IP Rating
IP30

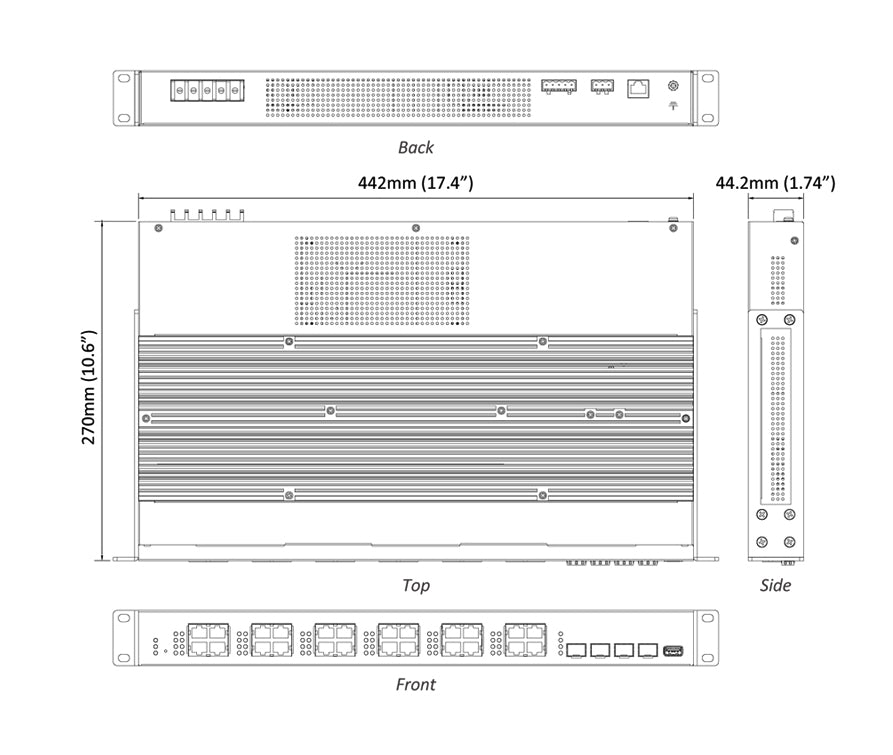

Dimensions
442mm x 270mm x 44.2mm (W x D x H)
17.4" x 10.6" x 1.74"

Weight
5.1Kg (11.2lbs)

Installation Type
Rack mounting

Click here for additional information

For detailed specifications, download the datasheet here

Low stock: 4 left

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Managed
POWER INPUT: Terminal Block: 52 - 57VDC
ALARM RELAY: Yes
MOUNT TYPE: Rack
LAYER 3: Yes
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w)
POE POWER BUDGET: 720W
REDUNDANT POWER: Yes
10/100 PORTS: 0
10/100/1000 PORTS: 24
10 GIG PORTS: Yes
FIBER TYPE: 1000MB SFP, 10Gig SFP+
FIBER PORTS: 4
FIBER/SFP CONNECTOR: SFP+
FIBER DISTANCE: SFP+ (Various distances)
INDUSTRY STANDARDS: EN 50121-4, UL 62368
ROUTING PROTOCOLS: OSPF v2, RIP v1 & v2, Static Routing, VRRP
