EX75964-0VTU : Industrial PoE Switch Managed Hardened Gigabit Ethernet

EX75964-0VTU : Industrial PoE Switch

EtherWAN's EX75964-0VTU industrial PoE switch is a managed, hardened, rack-mounted, PoE gigabit switch, with a total PoE power budget of 720W. It is equipped with a total of 28-ports — (24) gigabit PoE ports providing up to 60W power per port, and (4) dual-rate 10 gigabit SFP+ fiber ports.

TheEX75964-0VTU industrial PoE switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the EX75964-0VTU is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

Available PoE features include a long distance PoE mode which extends the maximum installation distance to 820ft and PoE watchdog which can automatically power cycle the port for which the connected device is not operating normally.

Users are able to access management features such as RADIUS and TACACS+ remote user authentication, port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via various interfaces. SFP uplink ports are capable of delivering up to 10-gigabit speeds, providing sufficient bandwidth for connected devices.

• (24) 10/100/1000BASE-T(X) PoE ports for high bandwidth connections
• (4) 1G/10G SFP+ uplink ports for fiber connections
• Full capacity switching running at full duplex
• Hardened operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Static routing, RIP v1/v2, and OSPF
• Redundancy with VRRP
• Reduces amount of broadcast traffic
• 60W per port IEEE 802.3bt
• 720W PoE Power budget
• PoE watchdog monitors status of connected PoE devices
• Port control
• 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
• Configure and monitor with eVue™ and eLite™

Casing Material
Metal

IP Rating
IP30

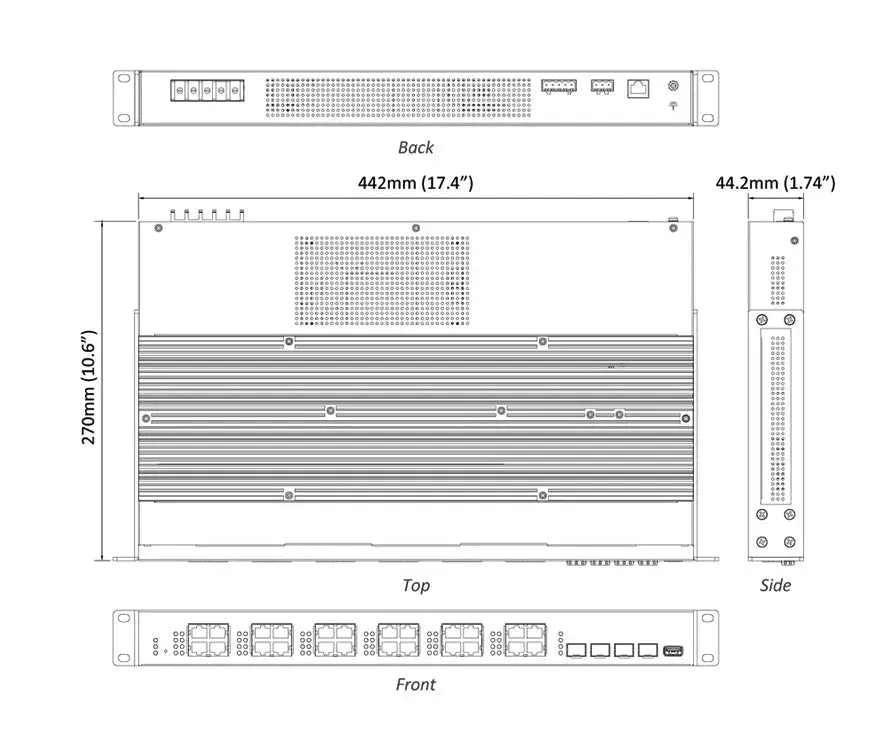

Dimensions
442mm x 270mm x 44.2mm (W x D x H)
17.4" x 10.6" x 1.74"

Weight
5.1Kg (11.2lbs)

Installation Type
Rack mounting

Click here for additional information

For detailed specifications, download the datasheet here
