EX78924E-0VB : Industrial PoE Switch Managed Hardened Gigabit Ethernet

EX78924E-0VB : Industrial PoE Switch

EtherWAN's EX78924E-0VB industrial PoE switch is a managed, hardened, DIN-rail mounted, PoE gigabit switch, with a total PoE power budget of 240W. It is equipped with a total of 12-ports — (8) gigabit PoE ports providing up to 60W power per port, and (4) dual-rate gigabit SFP fiber ports.

The EX78924E-0VB industrial PoE switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the EX78924E-0VB is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

• (8) 10/100/1000BASE-T(X) PoE ports for high bandwidth connections
• (4) Dual-rate 100/1000BASE SFP uplink ports for fiber connections
• Full capacity switching running at full duplex
• PoE power of up to 60W per port, compliant with IEEE 802.3bt type 3
• PoE watchdog monitors status of connected PoE devices
• Integrated with 2 DIs (digital inputs) and 2 relay outputs
• Supports static routes, RIP v1/v2, and VRRP
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing Material
Aluminum

IP Rating
IP30

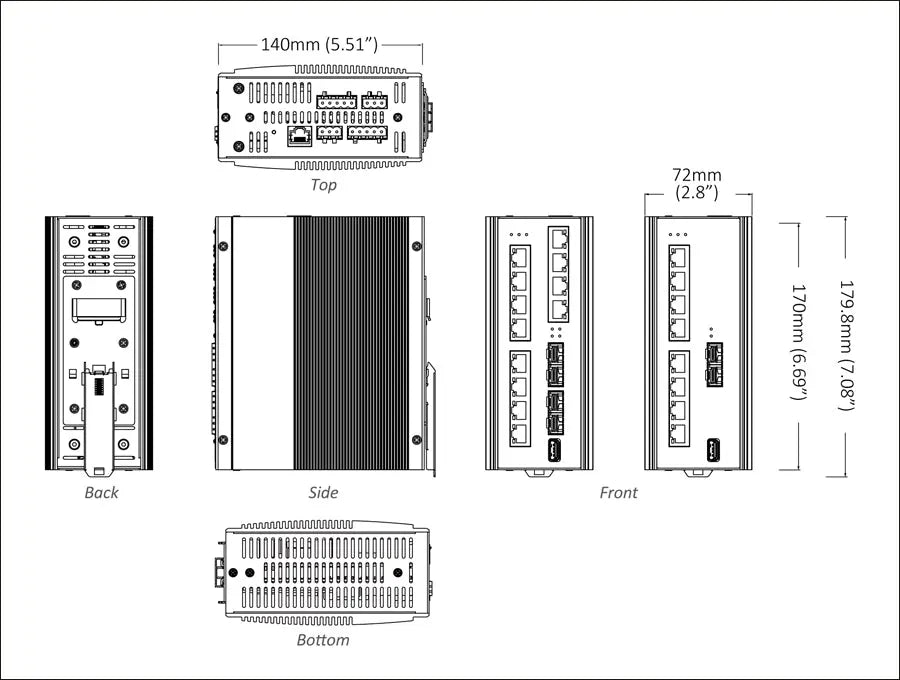

Dimensions
72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"

Weight
1.5kg (3.3lbs)

Installation Type
DIN-rail mounting

Click here for additional information

For detailed specifications, download the datasheet here
