EX78934E-0VB - Hardened Managed 16-Port Gigabit PoE Ethernet Switch (12-Port Gigabit PoE and 4 Dual-Rate Gigabit SFP Ports)

EX78934E-0VB - Hardened Managed 16-Port Gigabit PoE Ethernet Switch (12-Port Gigabit PoE and 4 Dual-Rate Gigabit SFP Ports)

SKU:EX78934E-0VB

Regular price $2,341.91 USD
Regular price Sale price $2,341.91 USD
Sale Sold out

EX78934E-0VB

EtherWAN's EX78934E-0VB is a hardened DIN-rail mounted 16-port Gigabit switching platform. It features 60W PoE, combined with robust management features required for mission-critical and harsh environments where sustained connectivity is crucial.

The EX78934E-0VB is equipped with 12 x 10/100/1000 BASE-T PoE ports, in combination with 4 dual-rate gigabit SFP ports. The PoE ports provide up to 60W/port with a total power budget of 240W, making the switch truly versatile to connect with PoE Powered Devices (PD) with different bandwidth and power consumption requirements such as outdoor PTZ dome cameras, wireless access points, PoE LED lights, and way-side communication devices. Available PoE features allow for more installation scenarios and less truck rolls. These include a long distance PoE mode which extends the maximum installation distance to 820ft and PoE watchdog which can automatically power cycle the port for which the connected device is not operating normally. Users are able to access management features such as RADIUS and TACACS+ remote user authentication, port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation and ACL, via various interfaces.

With hardened specifications, the EX78934E-0VB is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

  • (12) 10/100/1000BASE-T(X) ports for high bandwidth connections
  • (4) Dual-rate 100/1000BASE SFP uplink ports for fiber connections
  • Full capacity switching running at full duplex
  • PoE power of up to 60W per port, compliant with IEEE 802.3bt type 3
  • PoE watchdog monitors status of connected PoE devices
  • Integrated with 2 DIs (digital inputs) and 2 relay outputs
  • Supports static routes, RIP v1/v2, and VRRP
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Casing Material
Aluminum

IP Rating
IP30

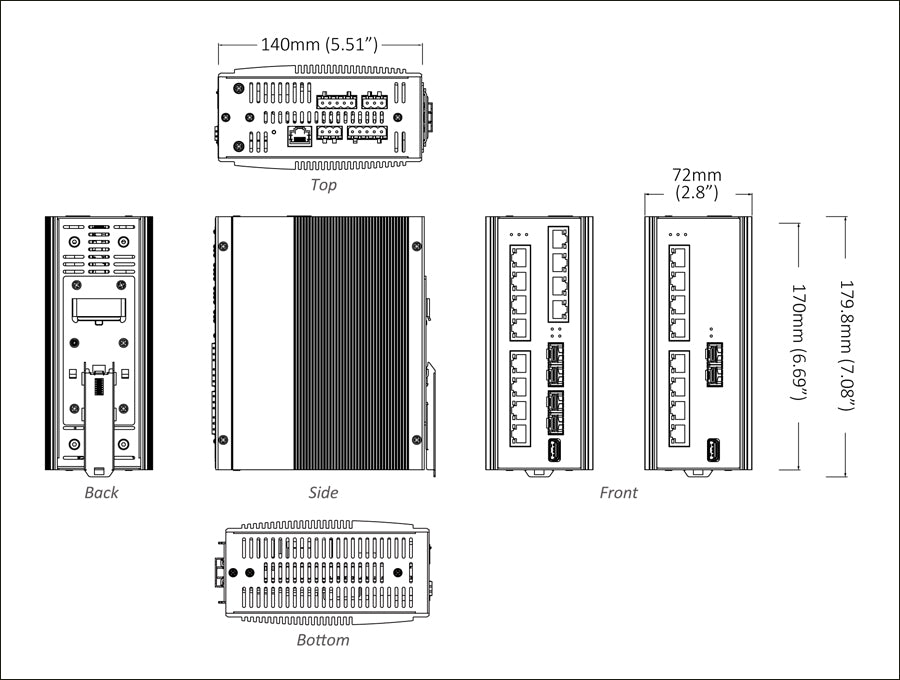

Dimensions
72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"

Weight
1.5kg (3.3lbs)

Installation Type
DIN-rail mounting

Click here for additional information

For detailed specifications, download the datasheet here

49 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Managed
POWER INPUT: Terminal Block: 52 - 57VDC
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail
LAYER 3: Yes
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w)
POE POWER BUDGET: 240W
REDUNDANT POWER: Yes
10/100 PORTS: 0
10/100/1000 PORTS: 12
10 GIG PORTS: No
FIBER TYPE: 100MB SFP, 1000MB SFP
FIBER PORTS: 4
FIBER/SFP CONNECTOR: SFP
FIBER DISTANCE: SFP (Various distances)
INDUSTRY STANDARDS: EN 50121-4, UL 61010
ROUTING PROTOCOLS: OSPF v2, RIP v1 & v2, Static Routing, VRRP
