EX78934R-0VB - Hardened Managed 16-Port Gigabit PoE Ethernet Switch (12-port 10/100/1000BASE-T(X) PoE + 4-port 100/1000BASE SFP)

EX78934R-0VB

EtherWAN's EX78934R-0VB is a hardened managed PoE Ethernet switch platform. Equipped with 12 gigabit PoE ports along with 60W power and IEEE 802.3.bt protocol support and 4 dual-rate gigabit SFP ports, the EX78900R series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.

• (12) 10/100/1000BASE-T(X) ports for high bandwidth connections
• (4) Dual-rate 100/1000BASE SFP uplink ports for fiber connections
• Full capacity switching running at full duplex
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• Static routing, RIP v1/v2, and OSPF
• Redundancy with VRRP
• Reduces amount of broadcast traffic
• IEEE 802.3bt with 60W; 240W Power budget
• Long distance PoE up to 250m (820ft)
• PoE watchdog monitors status of connected PoE devices
• Port control
• 802.1x port-based network access control and remote authentication through RADIUS
• Configure and monitor with eVue™ and eLite™

Casing Material
Aluminum

IP Rating
IP30

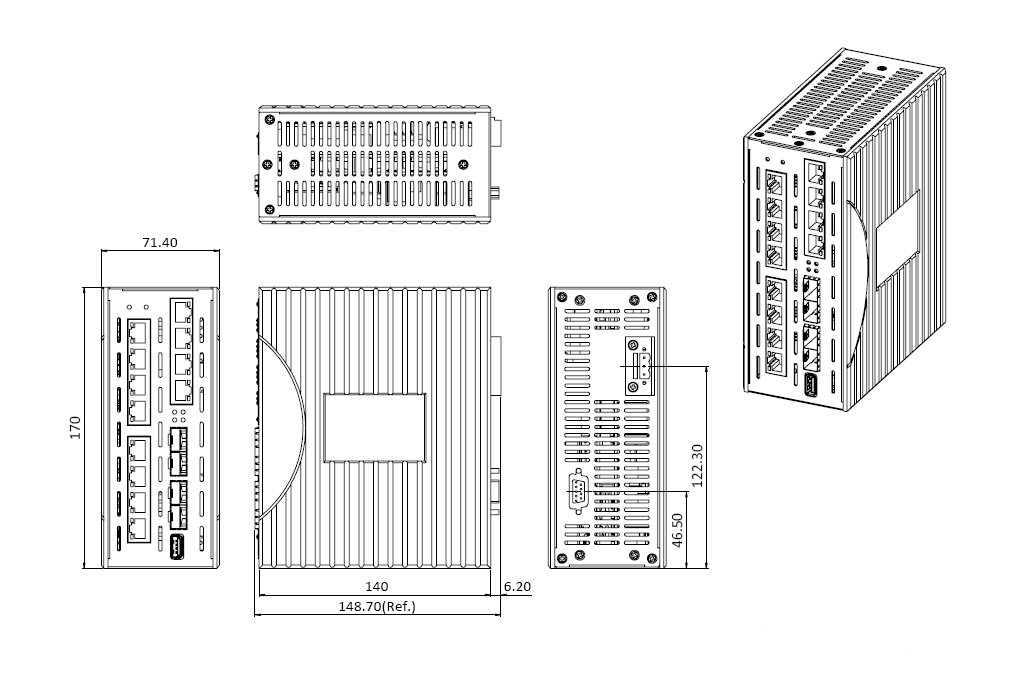

Dimensions
72mm x 140mm x 170mm (W x D x H)
2.8" x 5.5" x 6.7"

Weight
1.5kg (3.3lbs)
