EXT1100 - Hardened Gigabit PoE Extender

EXT1100

EtherWAN’s EXT1100 is a compact hardened DIN-rail mounted PoE Extender. Requiring no external power, the EXT1100 provides a simple and cost-effective method of extending a PoE connection beyond the standard 100 meter limit for copper Ethernet cabling.

• Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
• Up to 60W output for various security applications such as PTZ cameras
• Can be daisy-chained up to 4 units
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing
Aluminum case

IP Rating
IP30

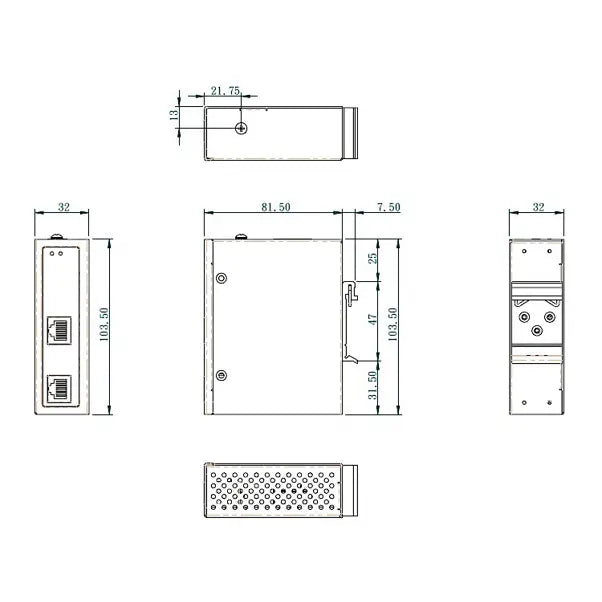

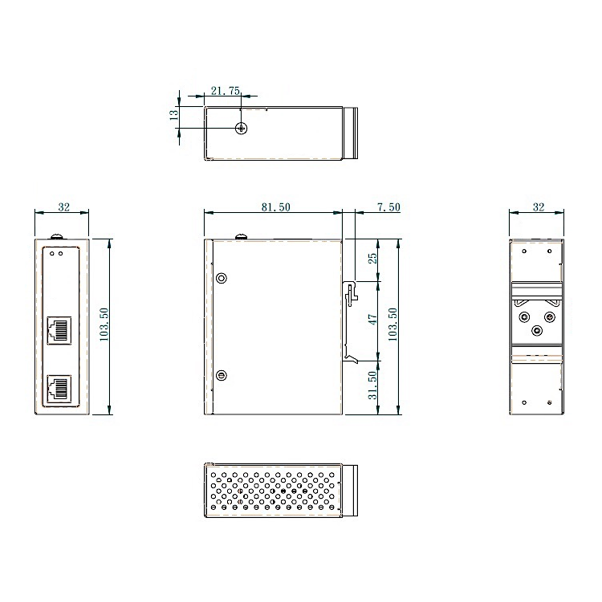

Dimensions
1.26" x 3.21" x 4.07" (W x D x H)
32mm x 81.5mm x 103.5mm

Weight
0.3Ibs (.14kg)

Installation
DIN-rail or wall mount

Click here for additional information

For detailed specifications, download the datasheet here
