EXT1200 - Hardened Gigabit IP67 PoE Extender

EXT1200

EtherWAN’s EXT1200 is a compact hardened IP67-rated PoE Extender. Requiring no external DC power, the EXT1200 provides a simple and cost-effective method of extending a PoE connection beyond the standard 100 meter limit for copper Ethernet cabling while maintaining the data speeds.

• Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
• Up to 60W output for various security applications such as PTZ cameras
• Can be daisy-chained up to 4 units
• Wide operating temperature range -40 to 75°C (-40 to 167°F)
• IP67 water resistance and fanless operation
• High impact, thermal shock, and electrical noise resistance

Casing
Aluminum case

IP Rating
IP67

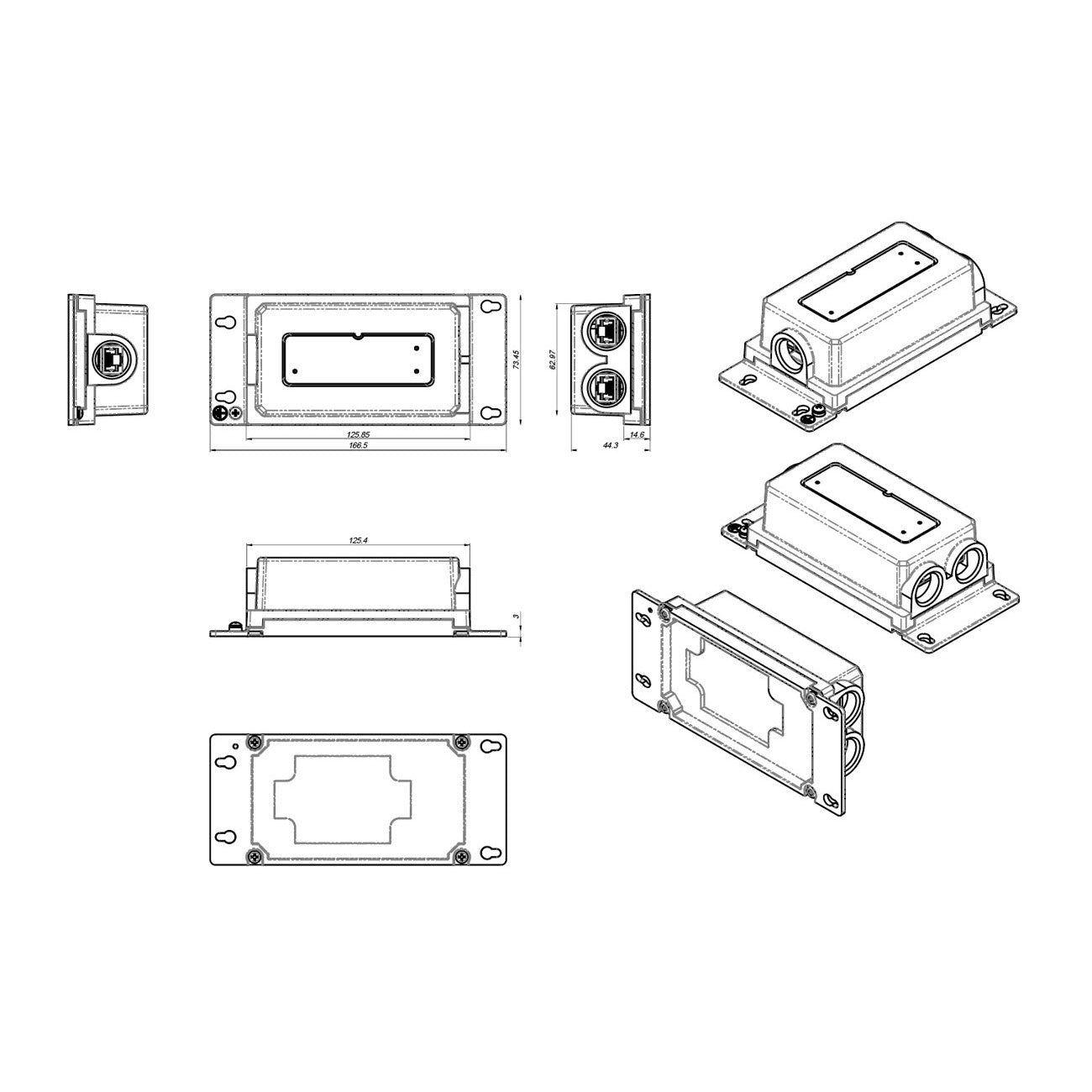

Dimensions
6.56" x 2.89" x 1.74" (W x D x H)
166.5mm x 73.45mm x 44.3mm

Weight
1.0lbs (0.45kg)

Installation
Wall/Panel mounting

Click here for additional information

For detailed specifications, download the datasheet here
