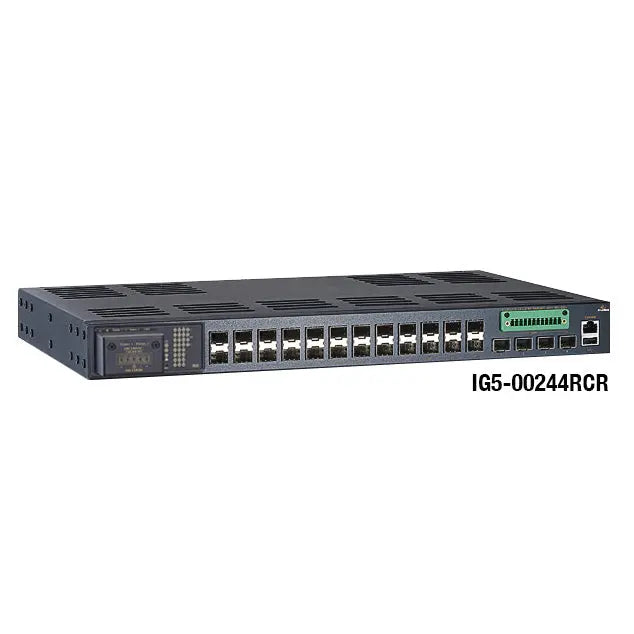

IG5-00244RCR : Industrial Ethernet Switch 28-port Managed SFP+ Fiber

EtherWAN IG5-00244RCR industrial ethernet switch offers enhanced performance with (28) total ports. The compact, front-facing design with a shorter depth ensures easy access and installation in tight cabinet spaces.

The IG5-00244RCR industrial ethernet switch has (24) gigabit SFP fiber ports and (4) 10G SFP+ fiber ports, offering high bandwidth and full duplex capabilities. Rich Layer 2 & Layer 3 management functionalities, along with digital I/O and relay control ports, support diverse network applications.

It also provides an ideal solution for aggregating network switches at the edge, and connectivity into the hub/core. In addition, this innovative device supports the IEEE 1588v2 standard, which defines the Precision Time Protocol (PTP), used to synchronize clocks throughout a packet-switched network.

The IG5-00244RCR industrial ethernet switch has a broad range of management features and options including broad range of management features and options includes IEEE 1588vs (PTP) for synchronizing clocks, port security, IGMP snooping, VLAN support, GARP protocols, link aggregation, and ACL, configurable via web GUI, Telnet, SSH, SNMP, RMON, HTTPS and SFTP. With the hardened specifications, the IG5 series is designed to operate at -40 to 75°C in harsh environments, and is IEC 61850 & IEEE 1613 compliant, capable of operating under high EMI environments, making it an ideal choice for mission-critical applications.

The rugged IP40 casing and extreme hardened grade, operating up to 85°C for 16 hours, make them ideal for outdoor installations. The IG5 SV is ideal for critical applications like urban infrastructure, intelligent transportation, industrial IoT, and smart energy networks.

• 28-ports (24-port gigabit SFP & 4-port 1G/10G SFP+)
• 100-240VAC Redundant (AC Inlet)
• Compact design with shortened depth (10.5") ideal for tight cabinet spaces

• Concise communication status display

• Front facing design allows for easy access and simple installation

• Extreme hardened grade, operating up to 85°C (185°F) for 16 hours, ideal for outdoor installations
• Sufficient switching capacity at 128Gbp

• DnA solutions for Digital I/O & Relay control

• Static routing, RIP v1/v2, and OSPF

• Redundancy with VRRPv2

Casing Material
Metal

IP Rating
IP40

Dimensions
442mm x 325mm x 44mm (W x D x H)
17.4” x 12.8” x 1.73”

Weight
4.6kg (10.14lbs)

Installation Type
Rack mounting
