The IG5 series is a hardened 10-gigabit rack-mounted managed Ethernet switch platform, designed to support high bandwidth switching in harsh environments. Equipped with (8) 10/100/1000BASE-T(X) ports, (16) gigabit SFP ports, and (4) 10-gigabit SFP+ ports, along with the IG5 series provides an ideal solution for aggregating network switches at the edge and connectivity into the hub/core. In addition, this innovative device supports the IEEE 1588v2 standard, which defines the Precision Time Protocol (PTP), used to synchronize clocks throughout a packet-switched network.
A broad range of management features and options includes IEEE 1588vs (PTP) for synchronizing clocks, port security, IGMP snooping, VLAN support, GARP protocols, link aggregation, and ACL, configurable via web GUI, Telnet, SSH, SNMP, RMON, HTTPS and SFTP. With the hardened specifications, the IG5 series is designed to operate at -40 to 75°C in harsh environments, and is IEC 61850 & IEEE 1613 compliant, capable of operating under high EMI environments.
- 24 full gigabit ports for high bandwidth aggregate connections
- 4 dual-rate SFP+ uplink ports for 10-gigabit fiber connections
- Full capacity switching running at full duplex
- IEEE 1588 PTP (Precision Time Protocol) Support
- Hardened-Grade for Non-Ventilated & Harsh Environments
- Lite Layer 3 Functionality
- High Bandwidth and Flexible Port Options
- 10-Gigabit Connectivity
- Dual rate design at all ports, up to 10G
- Wide operating temperature range of -40 to 75°C (-40 to 167°F)
- Meets IEC 60068-2-2 requirements for environmental testing at temperature range of -40°C to +85°C
- Thermal shock, and electrical noise resistance
- Static routing, RIP v1/v2, and OSPF
- Redundancy with VRRPv2
- Reduces amount of broadcast traffic
Casing Material
Metal
IP Rating
IP40

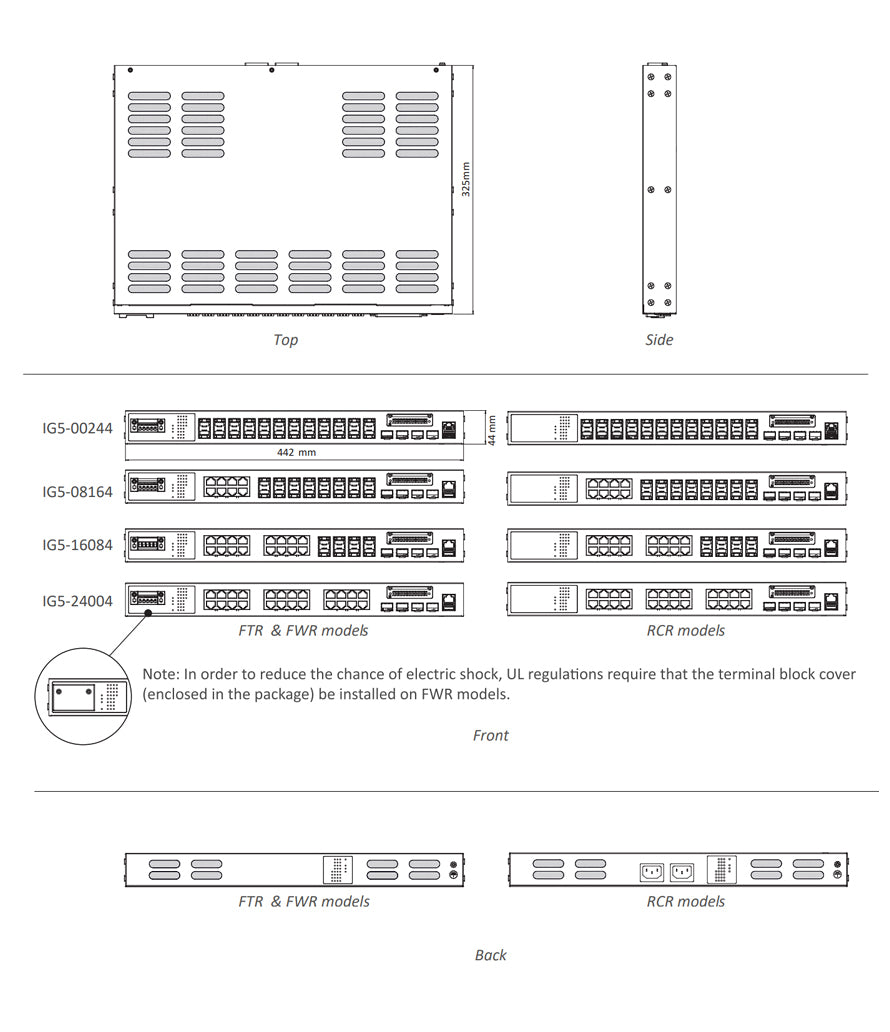

Dimensions
442mm x 325mm x 44mm (W x D x H)
17.4” x 12.8” x 1.73”
Weight
4.6kg (10.14lbs)
Installation Type
Rack mounting
