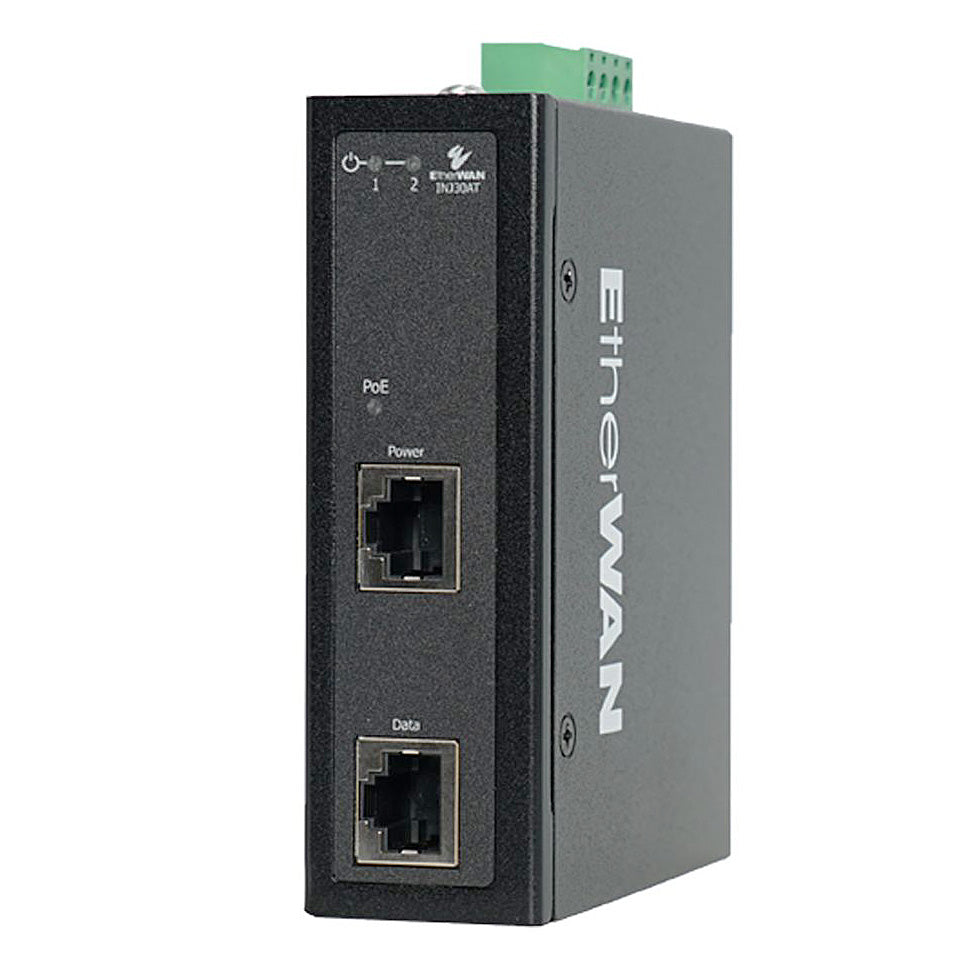

INJ30AT - Hardened Gigabit 30W PoE Injector (10/100/1000BASE-T, 30W 802.3at)

INJ30AT - Hardened Gigabit 30W PoE Injector (10/100/1000BASE-T, 30W 802.3at)

SKU:INJ30AT

Regular price $196.58 USD
Regular price Sale price $196.58 USD
Sale Sold out

INJ30AT

EtherWAN’s INJ30AT is a compact hardened DIN-rail mounted PoE injector. Providing up to 30W power output, the INJ30AT provides the solution required to integrate remote PoE devices such as IP cameras and other network devices into non-PoE networks for reliable operation even in harsh environments.

  • Provides PoE functionality to a non-PoE network
  • Up to 30W output for various security applications such as PTZ cameras
  • Backward compatible with 802.3af devices
  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance
  • 1 x 10/100/1000BASE-T(X), connection to network
  • 1 x 10/100/1000BASE-T(X), PoE connection to device

Casing Material
Aluminum

IP Rating
IP30

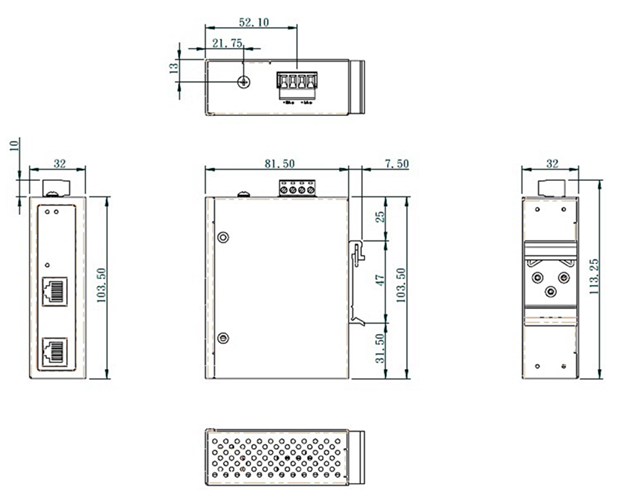

Dimensions
1.26" x 3.21" x 4.07"(W x D x H)
32mm x 81.5mm x 103.5mm

Weight
1.5lbs (0.68kg)

Installation Type
DIN-rail or wall mounting

Click here for additional information

For detailed specifications, download the datasheet here

75 in stock

View full details

Collapsible content

More Information

PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 167°F (-40 to 75°C)
MANAGEMENT TYPE: Unmanaged
POWER INPUT: 24-56VDC Redundant (Terminal block)
ALARM RELAY: No
MOUNT TYPE: DIN-Rail, Wall
POE TYPE: 802.3af (15w), 802.3at (30w)
REDUNDANT POWER: Yes
10/100/1000 PORTS: 2
