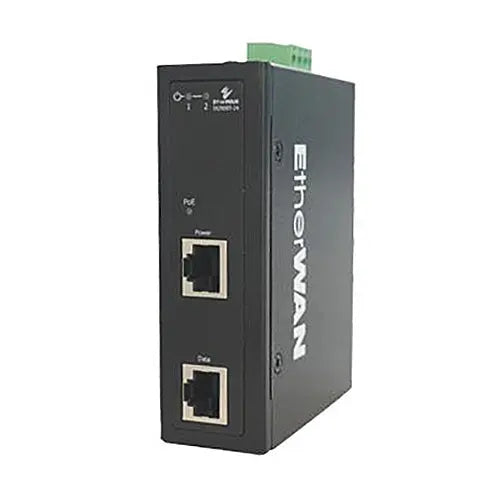

INJ90BT-24 : Industrial PoE Injector : 90W Hardened Gigabit

INJ90BT-24 : Industrial PoE Injector

EtherWAN's INJ90BT-24 industrial PoE injector is a compact hardened DIN-rail mounted PoE injector. Using the latest IEEE 802.3bt PoE technology providing up to 90W power output, the INJ90BT-24 provides the solution required to integrate remote PoE devices such as IP cameras, LED lights, wireless access point, and other network devices into non-PoE networks for reliable operation even in harsh environments.

• High power output using the latest IEEE 802.3bt technology
• Up to 90W output for various security, LED lighting, and other applications
• Backward compatible with 802.3af and 802.3at devices
• Hardened operating temperature range -40 to 75°C (-40 to 167°F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance
• 1 x 10/100/1000BASE-T(X), connection to network
• 1 x 10/100/1000BASE-T(X), PoE connection to device

Casing Material
Aluminum

IP Rating
IP30

Dimensions
32mm x 81.5mm x 103.5mm (W x D x H)
1.26" x 3.21" x 4.07"

Weight
1.5lbs (0.68kg)

Installation Type
DIN-rail or wall mounting

Click here for additional information

For detailed specifications, download the datasheet here
