EDR-120-48 - MEAN WELL - Hardened Industrial Power Supply 48V 120W DC 2.5A AC/DC DIN-Rail

The MEAN WELL EDR-120-48 is a reliable AC/DC power supply that delivers a single output of 48V at 2.5A, with a total power capacity of 120W. Designed for efficiency and stability, this power supply is suitable for various industrial and technological applications. With its compact design and robust construction, the EDR-120-48 ensures long-lasting performance and high levels of safety. Whether for manufacturing facilities, automation equipment, or telecommunications systems, this MEAN WELL power supply is an ideal choice for powering your devices with a steady and efficient flow of electricity.

EDR-120 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508,TUV BS EN/EN62368-1, and etc.) make EDR-120 a very competitive power supply solution for industrial applications.

Economical and slim, the EDR range of power supplies can be installed on a TS-35/7.5 or TS-35/15 mounting rail, and has been designed for space saving within cabinets. The EDR series is an ideal choice for many industries, fitting various inductive and capacitive applications.

• 48V DC 5A output
• Rated power: 120W
• AC input voltage range: 90 VAC ~ 264 VAC
• Dimensions: 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)

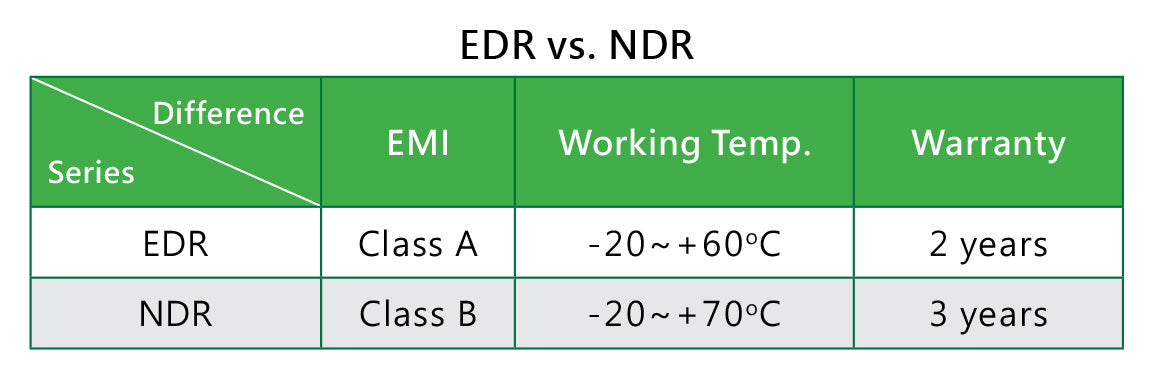

DIFFERENCE BETWEEN MEAN WELL EDR & NDR Power Supplies

MEAN WELL EDR & NDR DIN-Rail Power Supplies are AC/DC power supplies in a metal case. These cost-effective power supplies are single-phase, full range input devices with a slim width. Mean Well EDR is EN55022 class A, with an operating temperature from -20°C to 60°C and a 2-year warranty, while NDR is EMC EN55022 class B, with an operating temperature from -20°C to 70°C and a 3-year warranty.

For detailed specifications, download the datasheet here
