PD1041 - Hardened Surge Protection Device – RJ45, 10/100/1000BASE-T, Gigabit, and PoE

PD1041 - Hardened Surge Protection Device – RJ45, 10/100/1000BASE-T, Gigabit, and PoE

SKU:PD1041

Regular price $126.33 USD
Regular price Sale price $126.33 USD
Sale Sold out

PD1041

EtherWAN's PD1041 Hardened Surge Protection Device is designed to protect your EtherWAN Switch investment — however any Ethernet network device can be protected from dangerous electrical surges. Designed for harsh environments, the PD1041 can be placed where you need it to protect your valuable network equipment.

  • Plug and play installation
  • Compliant with IEC61643 and UL497B
  • Surge protection current up to 10kA
  • Robust structure for outdoor application
  • Provides pair-to-pair protection through RJ45 connector
  • Supports DIN-rail or desktop installation
  • Provides -40 to 75°C operating temperature range for extreme environments
  • Pass-through data and PoE power
  • Compatible with 10/100/1000BASE-T, Gigabit, and PoE products

Casing
Aluminum Case
IP20

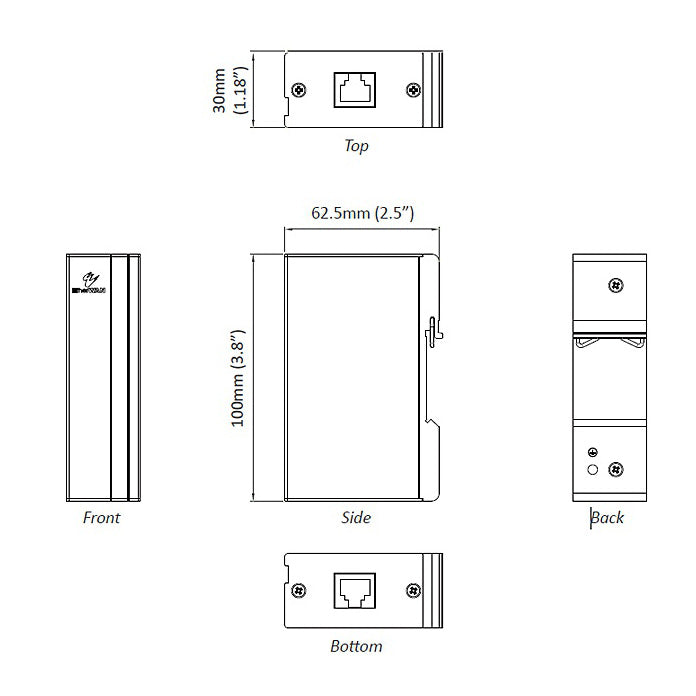

Dimensions
30mm x 62.5mm x 100mm (W x H x D)
(1.18" x 2.5" x 3.8")

Weight
.44 lbs (.2kg)

Installation
DIN-Rail

Connection
RJ45 Connector

Click here for additional information

For detailed specifications, download the datasheet here


144 in stock

View full details

Collapsible content

More Information

MOUNT TYPE: DIN-Rail
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
INDUSTRY STANDARDS: IEC 61643, UL 497B
MAXIMUM CONTINUOUS OPERATING VOLTAGE UC: ≤ 3.3V DC
MAXIMUM CONTINUOUS VOLTAGE UC (WIRE-WIRE): ≤ 3.3 V DC (± 60 V DC/PoE+)
MAXIMUM CONTINUOUS VOLTAGE UC (WIRE-GROUND): ≤ 180 V DC
NOMINAL CURRENT IN: ≤ 1.5 A (25 °C)
OPERATING EFFECTIVE CURRENT IC AT UC: ≤ 1 μA
RESIDUAL CURRENT IPE: ≤ 8 μA
NOMINAL DISCHARGE SURGE CURRENT In (8/20) μs (CORE-CORE): 100 A
NOMINAL DISCHARGE SURGE CURRENT In (8/20) μs (CORE-EARTH): 2 kA (per signal pair)
TOTAL SURGE CURRENT (8/20) μs: 10 kA
