PD1044 : Outdoor Surge Protector : 4-Port Industrial Hardened RJ45

PD1044 : Outdoor Surge Protector

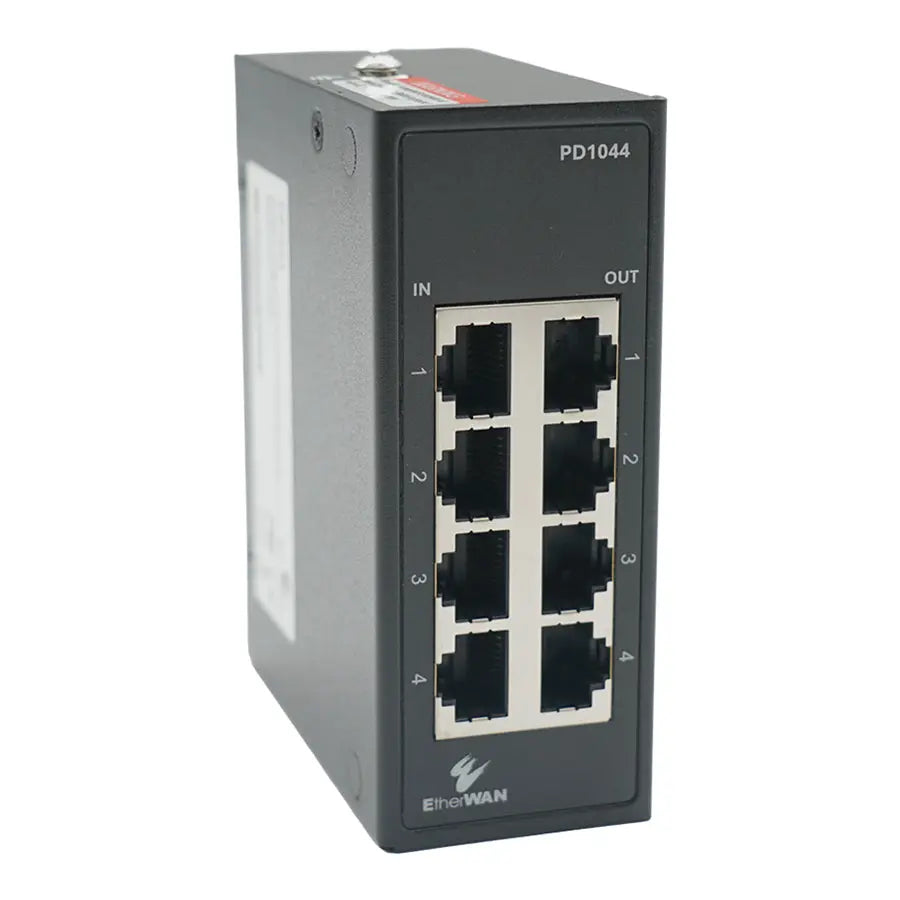

EtherWAN PD1044 outdoor surge protector is an industrial hardened, 4-port, RJ45 PoE-compatible protection device, designed to protect ethernet networking devices from dangerous electrical surges. Designed for harsh environments, the PD1044 can be placed where you need it to protect your valuable network equipment.

The PD1044 outdoor surge protector provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the PD1044 is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

• 4-port, RJ45 PoE-compatible
• Plug and play installation
• Provides pair-to-pair protection through RJ45 connector
• Hardened outdoor operating temperature range -40 to 75°C (-40 to 167°F)
• Supports DIN-rail or desktop installation

• Surge protection current up to 10kA
• Robust structure for outdoor application
• Pass-through data and PoE power
• Compatible with 10/100/1000BASE-T, gigabit, and PoE products
• Compliant with IEC61643 and UL497B

Casing
Rugged Aluminum Case
IP30

Dimensions
40mm x 100.5mm x 81.55mm (W x H x D)
(1.57" x 3.96" x 3.21")

Weight
.71 lbs (.32kg)

Installation
DIN-Rail or Wall/Panel

Connection
RJ45 Connector
