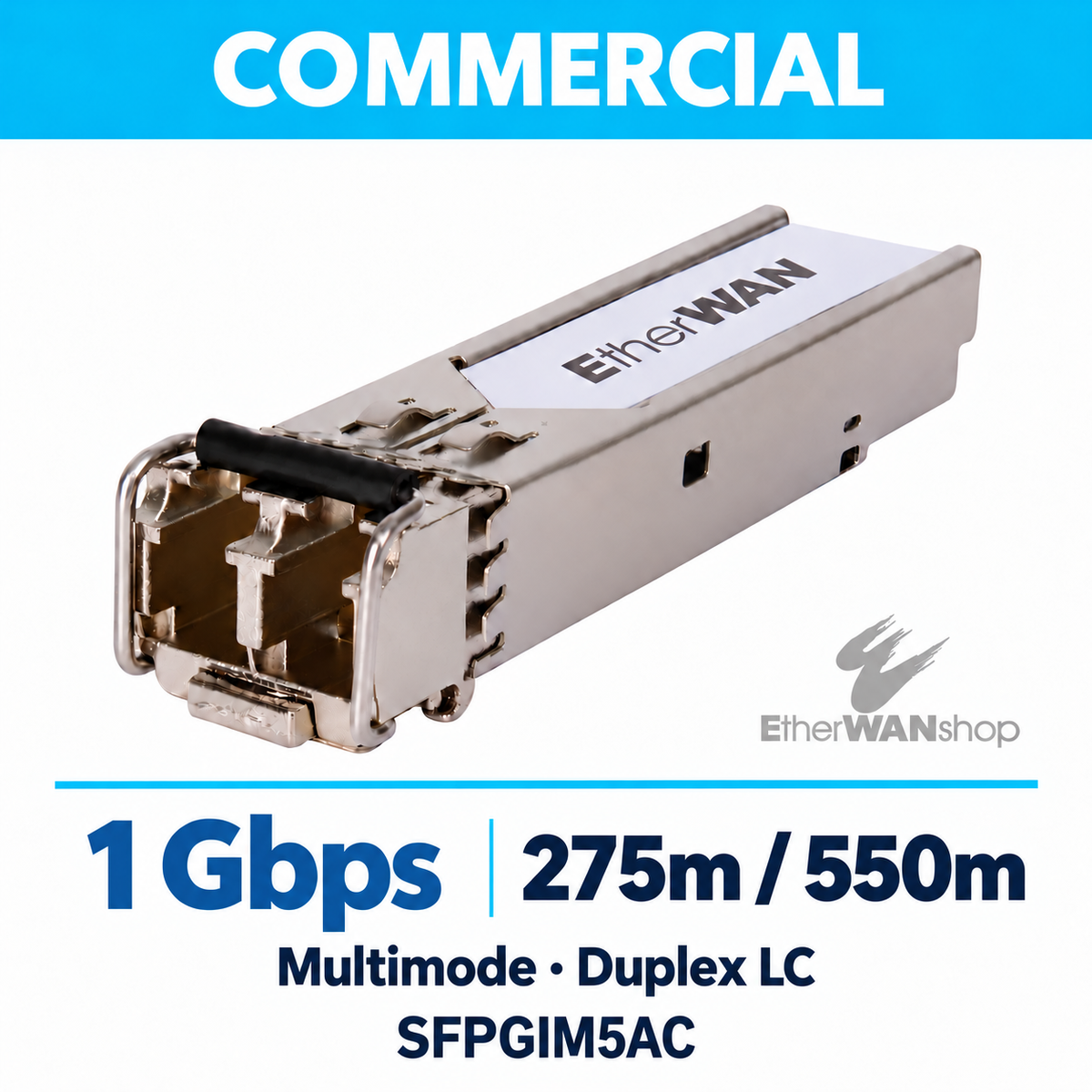

SFPGIM5AC Commercial Gigabit Multimode SFP Module, 275m/550m

SFPGIM5AC Commercial Multimode Fiber Transceiver, 275m/550m

Gigabit SFP module with duplex LC connectors, 850nm optics, and digital diagnostic monitoring. Reach up to 275m or 550m depending on fiber type. Commercial operating temperature: 0 to 70°C (32 to 158°F).

The EtherWAN SFPGIM5AC provides 1 Gbps multimode fiber connectivity for compatible Ethernet switches and media converters. Its commercial temperature rating makes it suitable for offices, equipment rooms, and other installations within its specified operating range.

The module uses two multimode fiber strands through a duplex LC connection. Maximum reach is 275m with 62.5/125µm fiber or 550m with 50/125µm fiber. Confirm your equipment’s supported SFP specifications and installed fiber type before ordering.

Key Features

• Gigabit connectivity: Supports 1 Gbps Ethernet fiber links on compatible equipment.
• Multimode fiber support: Designed for 62.5/125µm or 50/125µm multimode fiber.
• 275m/550m reach: Up to 275m with 62.5/125µm fiber or 550m with 50/125µm fiber, subject to the link’s optical losses.
• Duplex LC connection: Uses separate transmit and receive fiber strands.
• 850nm optics: For connections with a compatible transceiver at the other end.
• Digital diagnostic monitoring: Includes DDM for supported monitoring functions on compatible equipment.
• Commercial operation: Rated from 0 to 70°C (32 to 158°F).
• MSA compliant: Follows the Small Form Factor Pluggable Multi-Sourcing Agreement.

Applications

• Gigabit fiber uplinks between compatible Ethernet switches.
• Multimode connections between equipment rooms.
• Fiber connections using compatible media converters.
• Commercial surveillance networks requiring Gigabit fiber connectivity.

Common Questions

Why does this module list both 275m and 550m?
The maximum distance depends on the multimode fiber used. The datasheet specifies up to 275m with 62.5/125µm fiber and 550m with 50/125µm fiber. Actual reach also depends on optical losses from the fiber, connectors, and splices.

What is the difference between the commercial SFPGIM5AC and hardened SFPGIM5AM?
Both provide Gigabit multimode connectivity with duplex LC connectors, 850nm optics, and 275m/550m reach. The SFPGIM5AC operates from 0 to 70°C (32 to 158°F), while the hardened SFPGIM5AM supports −40 to 85°C (−40 to 185°F). Choose according to the temperature conditions at the installation.

Will this work in any switch or media converter with an SFP port?
Check your equipment’s supported transceiver specifications. Its port must support a compatible 1Gbps multimode SFP, and the manufacturer may have additional compatibility requirements. This module requires multimode fiber and a compatible optical transceiver at the other end. Contact us with your equipment model, fiber type, and link distance if you need help selecting a module.
