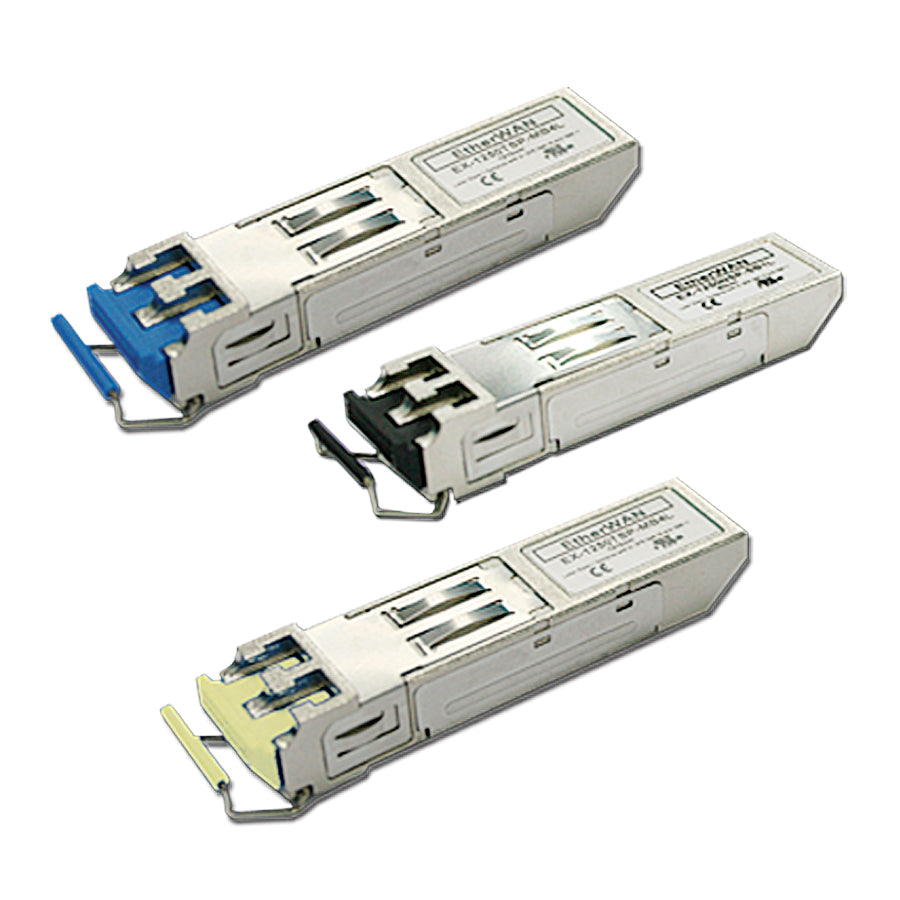

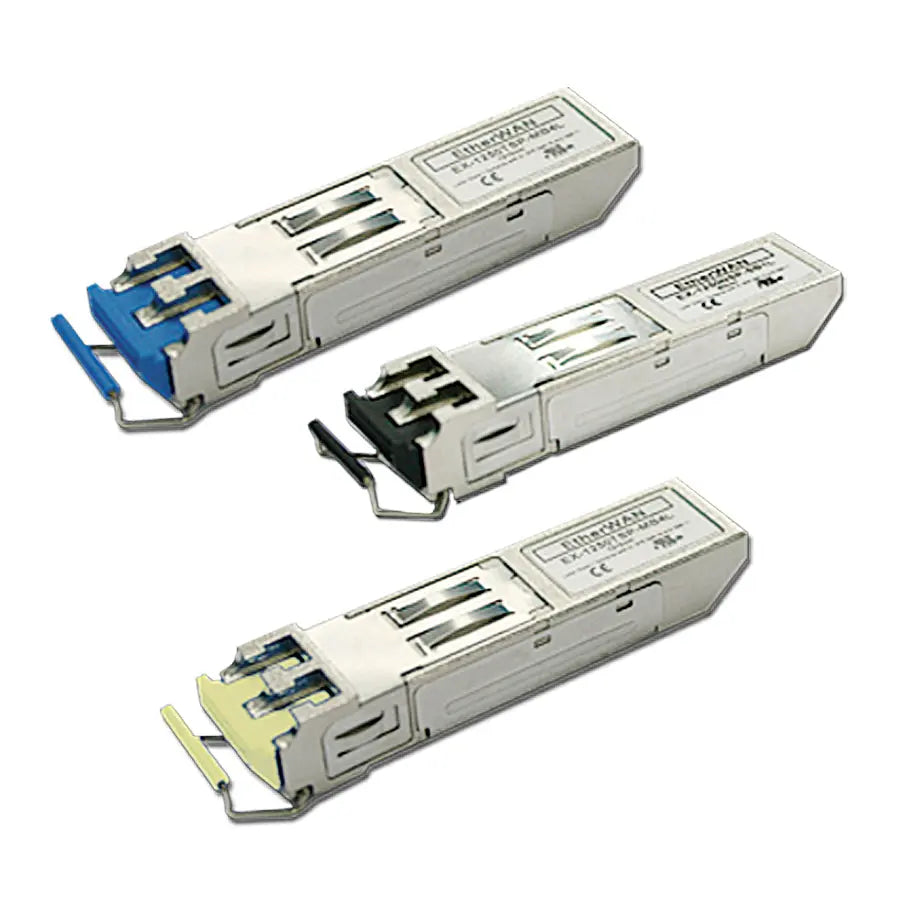

SFPGZS20M - Hardened Gigabit SFP Module - (Single LC, Single-Mode, 20Km, TX: 1550nm RX: 1310nm, DDM)
SFPGZS20M - Hardened Gigabit SFP Module - (Single LC, Single-Mode, 20Km, TX: 1550nm RX: 1310nm, DDM)
SKU:SFPGZS20M
SFPGZS20M - Hardened Gigabit SFP Module
Single LC, Single-Mode, 20Km, TX: 1550nm RX: 1310nm, DDM
Please note that the SFPGZS20M is a special order product, and if you decide to purchase this product, it cannot be cancelled, and it is non-returnable.
Lead time is approximately 4-8 weeks. By purchasing this product on etherwanshop.com, you agree to the terms that this item is non-cancellable and non-returnable (NCNR).
If you have any question please contact us at info@etherwanshop.com
EtherWAN's SFP modules are rigorously tested, and are 100% inter-operable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.
- Hardened Operating Temperature Range: -40 to 85°C / -40 to 185°F
- Enhanced Digital Diagnostic Monitoring available for models marked “DDM” to provide real-time diagnostic information
- Hot-pluggable for instant operation
- All SFPs have been tested with the best operating performance on EtherWAN switches
- The characteristics are performed in accordance with Telcordia Specification GR-468-CORE
- Single +3.3V Power Supply
- RoHS compliant and lead-free
- AC/AC differential electrical interface
- Eye safety designed to meet laser Class 1 compliant with EN 60825-1
- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
- EMC requirement meets FCC in the United States and CENELEC EN 55022 (CISPR 22) in Europe
Click here for additional information
For detailed SFP specifications, download the datasheet here
Share
Low stock: 10 left
View full detailsCollapsible content
More Information
FIBER PORTS: 1
FIBER TYPE: 1000MB SFP
FIBER DISTANCE: ) 20Km
OPTICAL CABLE TYPE: Single-mode 9/125μm
FIBER/SFP CONNECTOR: Simplex LC
WAVELENGTH: TX: 1550nm RX: 1310nm
LINK BUDGET: 15dBm
OPTICAL OUTPUT POWER: -8 to -2dBm
SENSITIVITY: -23dBm
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 85°C / -40 to 185°F
