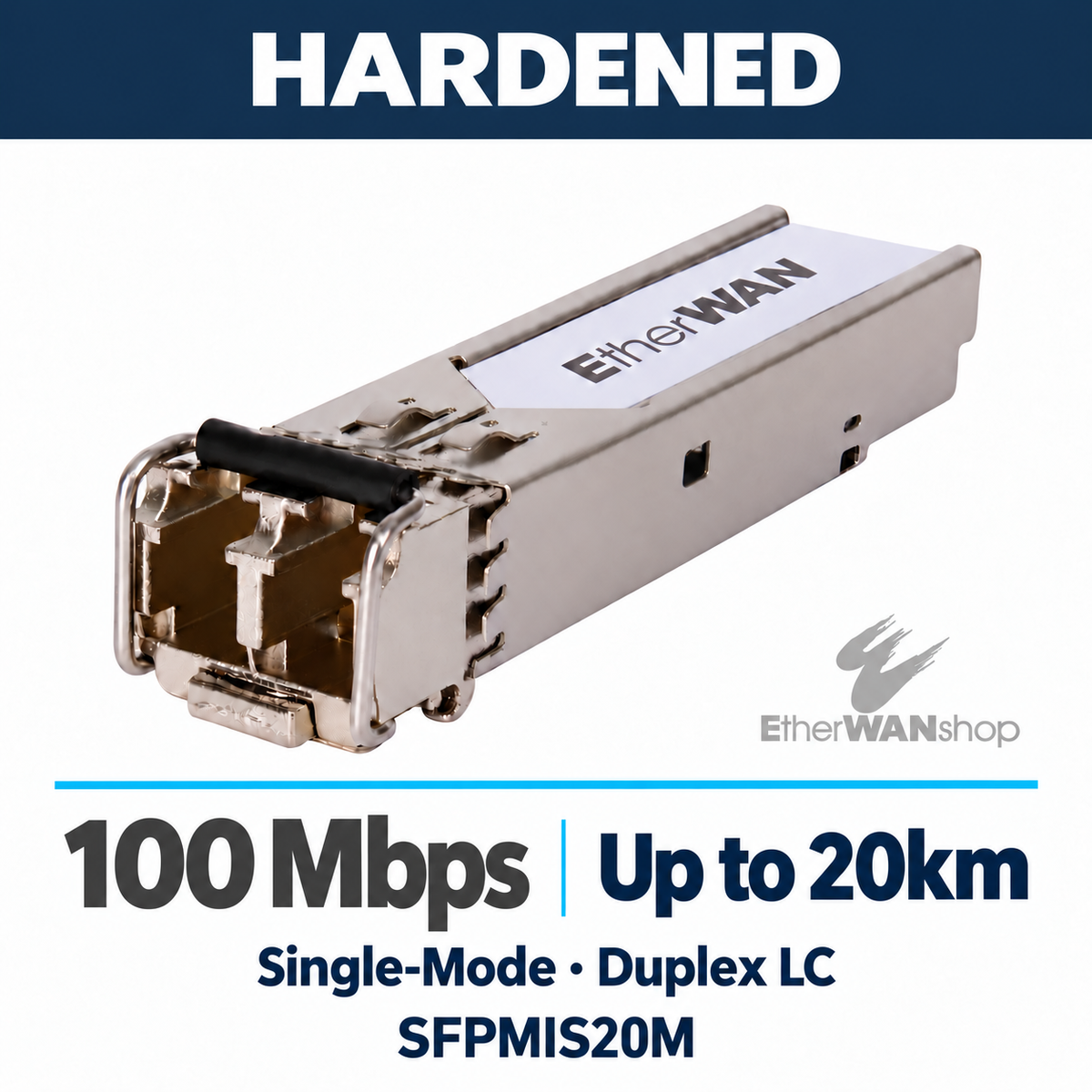

SFPMIS20M Hardened 100 Mbps Single-Mode SFP Module, 20km

SFPMIS20M Hardened Single-Mode Fiber Transceiver, 20km

100 Mbps Fast Ethernet SFP module with duplex LC connectors, 1310nm optics, and digital diagnostic monitoring. Reach up to 20km over single-mode fiber. Hardened operating temperature: −40 to 85°C (−40 to 185°F).

The EtherWAN SFPMIS20M provides 100 Mbps single-mode fiber connectivity for compatible Ethernet switches and media converters. Its hardened temperature rating makes it suitable for industrial equipment, transportation systems, utility networks, and other installations exposed to wide temperature changes.

The module uses two 9/125µm single-mode fiber strands through a duplex LC connection. It supports links up to 20km, subject to the link’s optical losses. Confirm that your equipment supports a 100 Mbps fiber SFP, along with the installed fiber type and required distance, before ordering.

Key Features

• 100 Mbps connectivity: Supports Fast Ethernet fiber links on compatible equipment.
• Single-mode fiber support: Designed for 9/125µm single-mode fiber.
• Up to 20km reach: Supports longer-distance fiber connections, subject to optical losses from the fiber, connectors, and splices.
• Duplex LC connection: Uses separate transmit and receive fiber strands.
• 1310nm optics: For connections with a compatible transceiver at the other end.
• Digital diagnostic monitoring: Includes DDM for supported monitoring functions on compatible equipment.
• Hardened operation: Rated from −40 to 85°C (−40 to 185°F).
• MSA compliant: Follows the Small Form Factor Pluggable Multi-Sourcing Agreement.

Applications

• 100 Mbps fiber links between compatible industrial Ethernet switches.
• Single-mode connections between buildings or remote equipment locations.
• Fiber connections using compatible Fast Ethernet media converters.
• Transportation, utility, and surveillance networks requiring 100 Mbps connectivity across a wide temperature range.

Common Questions

What is the difference between the SFPMIS20M and SFPGIS20M?
The SFPMIS20M supports 100 Mbps Fast Ethernet, while the SFPGIS20M supports 1 Gbps Gigabit Ethernet. Both use duplex LC connectors and single-mode fiber with up to 20km reach. Choose the module that matches your equipment’s supported fiber-port speed and transceiver specifications.

What fiber cable does this module require?
It requires two strands of 9/125µm single-mode fiber with duplex LC connectors at the module. Use an LC-to-LC patch cable for an LC connection at the other end, or an SC-to-LC patch cable when connecting to an SC patch panel or compatible SC-equipped device.

Will this work in a Gigabit SFP port?
Only if the equipment explicitly supports a compatible 100 Mbps fiber SFP in that port. A Gigabit SFP port does not automatically support 100 Mbps modules. Check the equipment manufacturer’s supported transceiver specifications and use a compatible 100 Mbps optical transceiver at the other end. Contact us with your equipment model, fiber type, and link distance if you need help selecting a module.

Related Fiber Cables

• FCBL-SMLCLC-2M: 2m duplex single-mode LC-to-LC patch cable.
• FCBL-SMSCLC-2M: 2m duplex single-mode SC-to-LC patch cable.

Choose the cable that matches the connection at the other end. Patch cables are sold separately.
