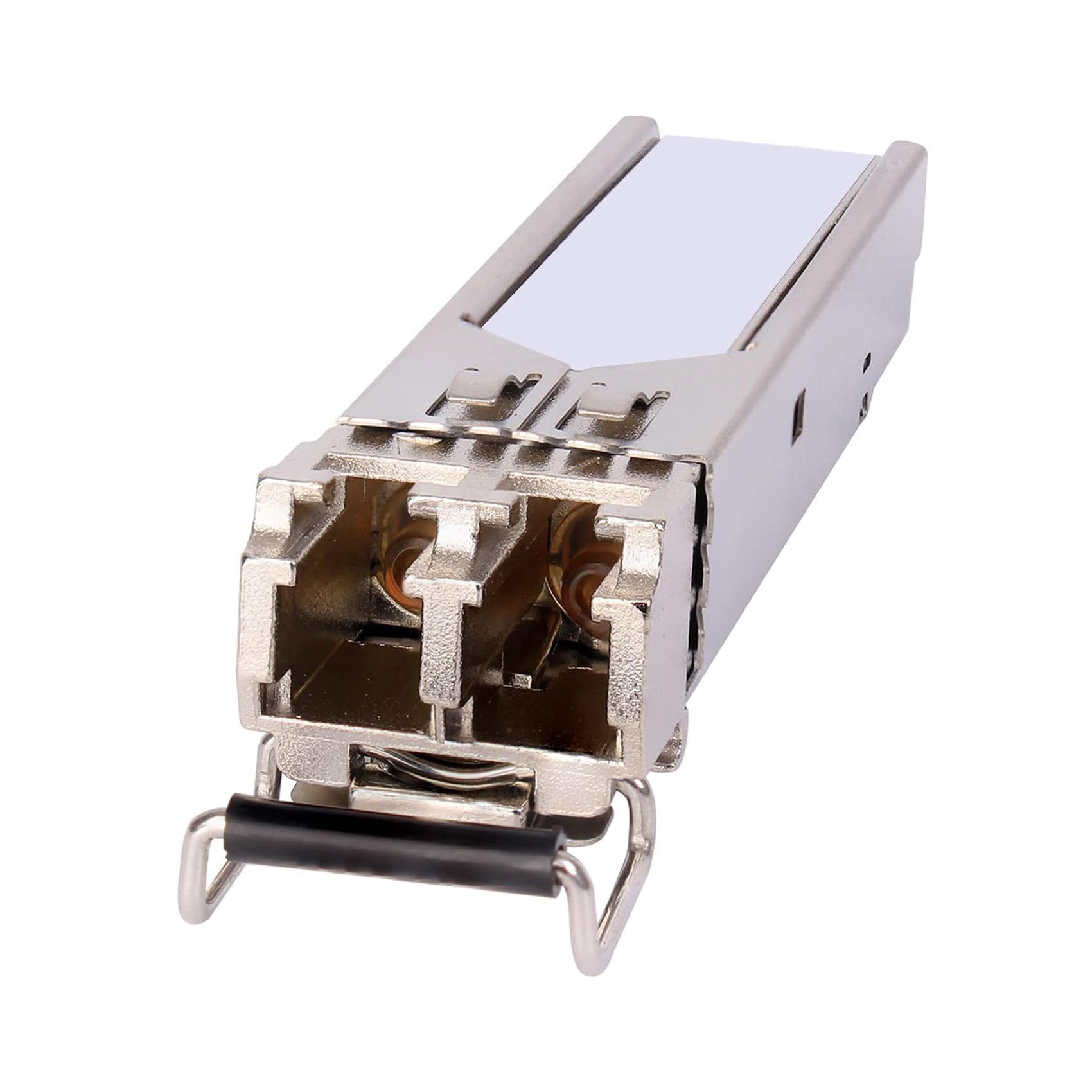

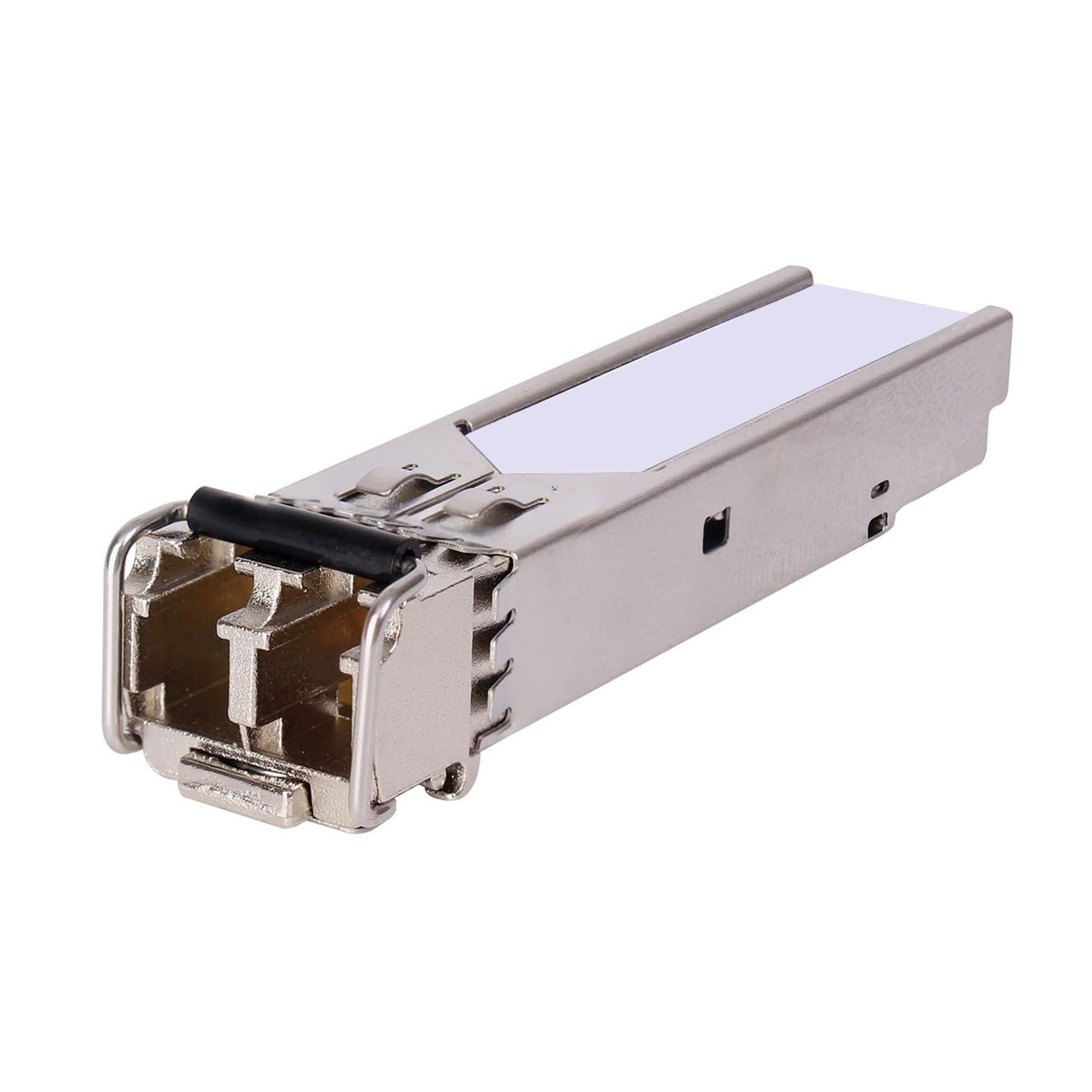

SFPTIS20M - Hardened 10-Gigabit SFP - (Duplex LC, Single-Mode, 20Km, 1310nm, DDM)

SFPTIS20M - Hardened 10-Gigabit SFP - (Duplex LC, Single-Mode, 20Km, 1310nm, DDM)

SKU:SFPTIS20M

Regular price $1,089.62 USD
Regular price Sale price $1,089.62 USD
Sale Sold out

SFPTIS20M - Hardened 10-Gigabit SFP Module

Duplex LC, Single-Mode, 20Km, 1310nm, DDM

EtherWAN's SFP modules are rigorously tested, and are 100% inter-operable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.

  • Hardened Operating Temperature Range: -40 to 85°C / -40 to 185°F
  • Enhanced Digital Diagnostic Monitoring available for models marked “DDM” to provide real-time diagnostic information
  • Hot-pluggable for instant operation
  • All SFPs have been tested with the best operating performance on EtherWAN switches
  • The characteristics are performed in accordance with Telcordia Specification GR-468-CORE
  • Single +3.3V Power Supply
  • RoHS compliant and lead-free
  • AC/AC differential electrical interface
  • Eye safety designed to meet laser Class 1 compliant with EN 60825-1
  • Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
  • EMC requirement meets FCC in the United States and CENELEC EN 55022 (CISPR 22) in Europe

Click here for additional information

For detailed SFP specifications, download the datasheet here



      16 in stock

      View full details

      Collapsible content

      More Information

      FIBER PORTS: 1
      FIBER TYPE: 10-Gigabit SFP
      FIBER DISTANCE: 20Km
      OPTICAL CABLE TYPE: Single Mode 9/125μm
      FIBER/SFP CONNECTOR: Duplex LC
      WAVELENGTH: 1310nm
      LINK BUDGET: 9.4dBm
      OPTICAL OUTPUT POWER: -5 to +1dBm
      SENSITIVITY: -15.5dBm
      PRODUCT CLASS: Industrial/Hardened
      OPERATING TEMPERATURE RANGE: -40 to 85°C / -40 to 185°F
