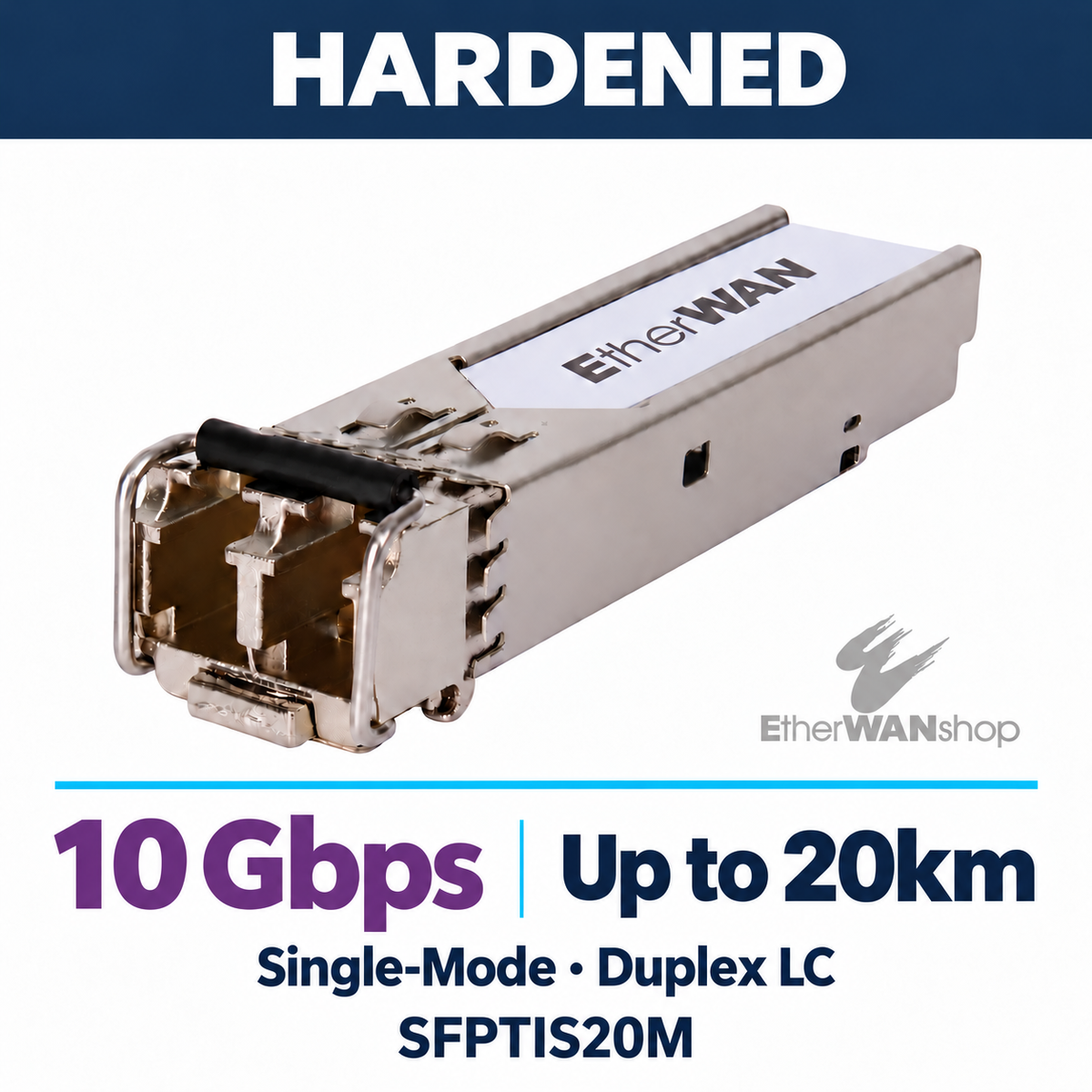

SFPTIS20M Hardened 10-Gigabit Single-Mode SFP Module, 20km

SFPTIS20M Hardened Single-Mode Fiber Transceiver, 20km

10-Gigabit SFP module with duplex LC connectors, 1310nm optics, and digital diagnostic monitoring. Reach up to 20km over single-mode fiber. Hardened operating temperature: −40 to 85°C (−40 to 185°F).

The EtherWAN SFPTIS20M provides 10 Gbps single-mode fiber connectivity for compatible Ethernet switches and other supported networking equipment. Its hardened temperature rating makes it suitable for industrial equipment, transportation systems, utility networks, and other installations exposed to wide temperature changes.

The module uses two 9/125µm single-mode fiber strands through a duplex LC connection. It supports links up to 20km, subject to the link’s optical losses. Confirm that your equipment supports this 10 Gbps transceiver, along with the installed fiber type and required distance, before ordering.

Key Features

• 10-Gigabit connectivity: Supports 10 Gbps Ethernet fiber links on compatible equipment.
• Single-mode fiber support: Designed for 9/125µm single-mode fiber.
• Up to 20km reach: Supports longer-distance fiber connections, subject to optical losses from the fiber, connectors, and splices.
• Duplex LC connection: Uses separate transmit and receive fiber strands.
• 1310nm optics: For connections with a compatible transceiver at the other end.
• Digital diagnostic monitoring: Includes DDM for supported monitoring functions on compatible equipment.
• Hardened operation: Rated from −40 to 85°C (−40 to 185°F).
• MSA compliant: Follows the Small Form Factor Pluggable Multi-Sourcing Agreement.

Applications

• 10 Gbps fiber uplinks between compatible industrial Ethernet switches.
• Single-mode connections between buildings or remote equipment locations within the specified reach.
• High-capacity connections for surveillance networks carrying traffic from multiple cameras.
• Transportation, utility, and industrial networks requiring longer-distance 10 Gbps connectivity across a wide temperature range.

Common Questions

Will this module work in a standard Gigabit SFP port?
A port that supports only 1 Gbps SFP modules will not support this 10 Gbps transceiver. Check that your equipment has a compatible 10 Gbps SFP+ port and supports the SFPTIS20M’s transceiver specifications. Use a compatible 10 Gbps optical transceiver at the other end.

What fiber cable does this module require?
It requires two strands of 9/125µm single-mode fiber with duplex LC connectors at the module. Use an LC-to-LC patch cable for an LC connection at the other end, or an SC-to-LC patch cable when connecting to an SC patch panel or compatible SC-equipped device.

Will this module work over any distance up to 20km?
The maximum specified reach is 20km, but distance alone does not determine compatibility. Fiber, connectors, and splices contribute optical losses, and the receiving transceiver’s input limits must also be considered. Confirm the optical specifications at both ends when planning the link.

Related Fiber Cables

• FCBL-SMLCLC-2M: 2m duplex single-mode LC-to-LC patch cable.
• FCBL-SMSCLC-2M: 2m duplex single-mode SC-to-LC patch cable.

Choose the cable that matches the connection at the other end. Patch cables are sold separately.
