SPL90BT - Hardened Gigabit 90W PoE Splitter (10/100/1000BASE-T, 90W 802.3bt) Power Supply
SPL90BT - Hardened Gigabit 90W PoE Splitter (10/100/1000BASE-T, 90W 802.3bt) Power Supply
SKU:SPL90BT
SPL90BT
EtherWAN's SPL90BT is a compact hardened DIN-rail mounted PoE splitter. Using the latest IEEE 802.3bt PoE technology, the SPL90BT can accept up to 90W power from a PoE power source and provide power to remote non-PoE devices in environments where power is not available. Hardened-grade allows for reliable operation even in harsh environments.
- Provides power to remote non-PoE devices
- Operates as a PoE-powered power supply
- Various DC voltage outputs to power wide range of devices
- Latest PoE IEEE 802.3bt protocol compliant
- Wide operating temperature range -40 to 75°C (-40 to 167°F)
- Fanless operation
- High impact, thermal shock, and electrical noise resistance
Casing Material
Aluminum
IP Rating
IP30

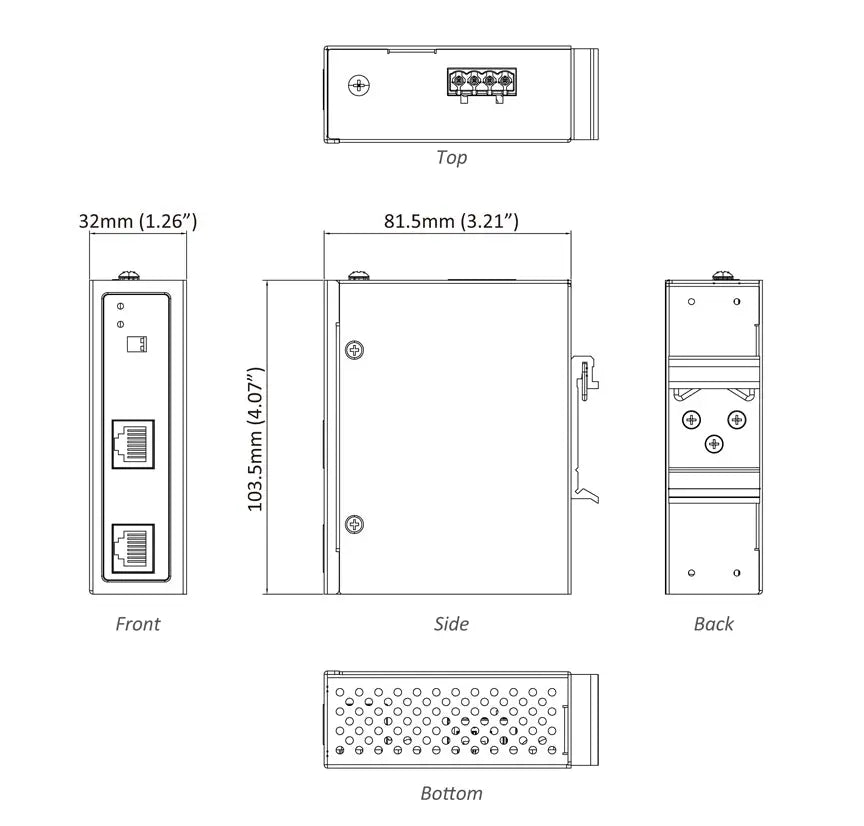

Dimensions
32mm x 81.5mm x 103.5mm (W x D x H)
1.26" x 3.21" x 4.07"
Weight
1.5lbs (0.68kg)
Installation Type
DIN-rail or wall mounting
Click here for additional information
For detailed specifications, download the datasheet here
Share
74 in stock
View full detailsCollapsible content
More Information
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Unmanaged
ALARM RELAY: No
MOUNT TYPE: DIN-Rail, Panel, Wall
LAYER 3: No
POE TYPE: 802.3af (15w), 802.3at (30w), 802.3at (60w), 802.3bt (60w), 802.3bt (90w)
POE POWER BUDGET: 90W
10/100/1000 PORTS: 2
