TG103H-0802 : Industrial PoE Switch : 10-port Unmanaged Ethernet SFP

TG103H-0802 : Industrial PoE Switch

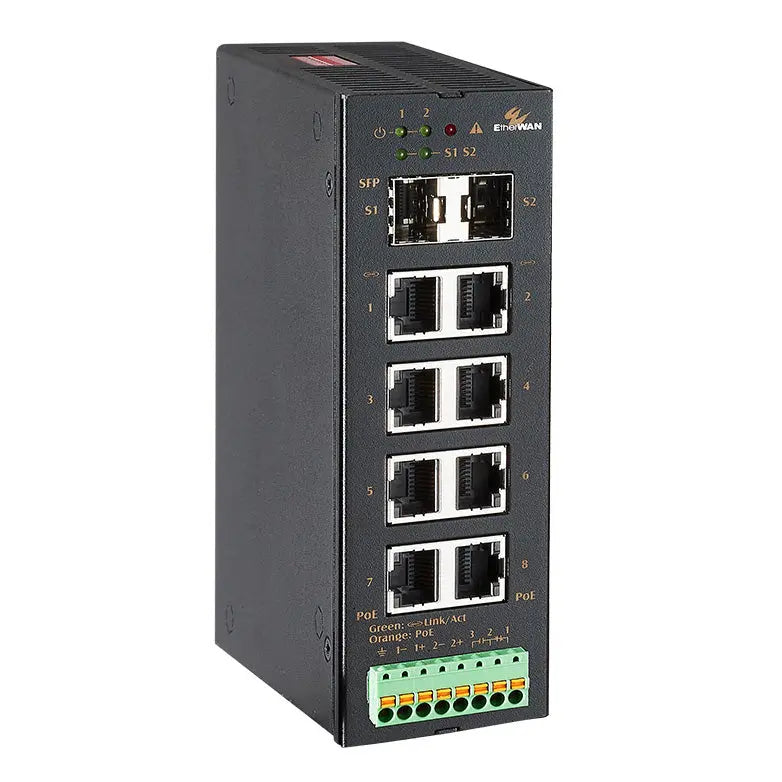

EtherWAN TG103H-0802 industrial PoE switch is an unmanaged, hardened, DIN-rail mounted, PoE gigabit switch, with a total PoE power budget of 270W. It is equipped with a total of 10-ports — (8) gigabit PoE ports providing up to 90W power per port, and (2) gigabit SFP fiber ports. It is a low-cost, easy-to-use device that combines essential industrial ethernet networking functionality with rugged performance.

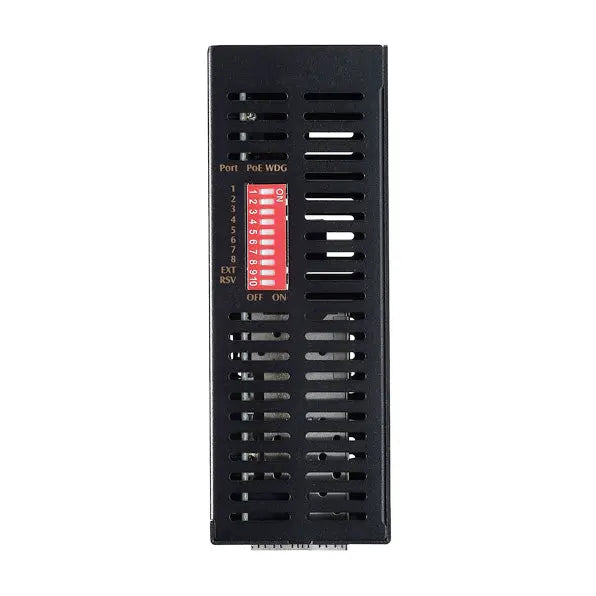

This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of a variety of network devices. QoS (Quality of Service) support allows for traffic prioritization and effective management of resources. A built-in watchdog feature supports the TG103H as an intelligent device to prevent packet loss from powered devices in the network. The feature can be enabled per port via DIP switch to enhance the feature flexibility.

The TG103H-0802 industrial PoE switch provides flexibility, speed, and reliability for networks in urban infrastructures used for high-definition surveillance and encrypted security systems, that operate in the harsh conditions of wastewater facilities, power plants, intelligent transportation systems, data centers, border protection, and other areas where connectivity is crucial.

With hardened specifications, the TG103H-0802 is designed to operate at -40 to 75°C in harsh environments, where high ESD, shock, and vibration may be present.

• (8) 10/100/1000BASE-T(X) PoE ports for high bandwidth connections
• (2) gigabit SFP fiber ports
• PoE power of up to 90W per port, compliant with IEEE 802.3bt type 4
• Total power budget up to 270W
• Data streaming monitoring for connected PD
• Industrial Fanless Design
• 6Kv surge protection

Casing Material
Metal

IP Rating
IP30

Dimensions
1.77" x 4.92" x 5.71" (W x D x H)
45mm x 125mm x 145mm

Weight
1.27lbs (0.577kg)

Installation Type

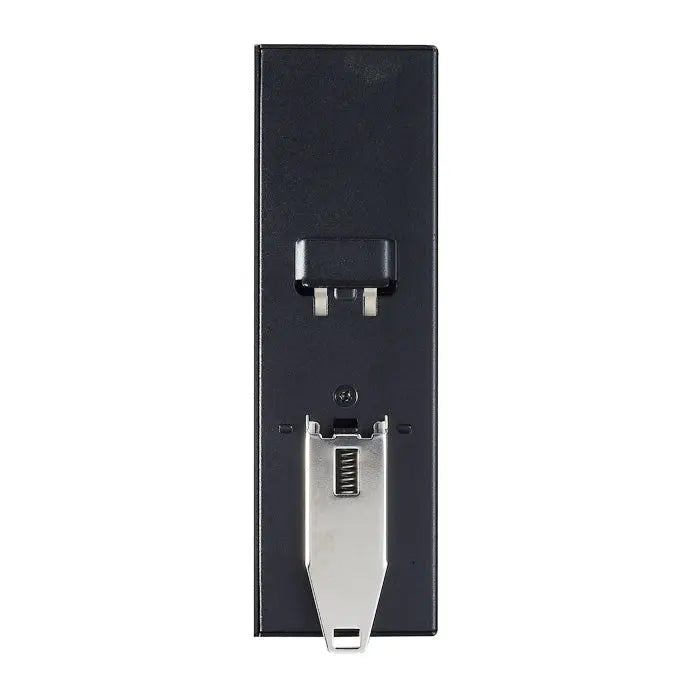

DIN-Rail

Click here for additional information

For detailed specifications, download the datasheet here
