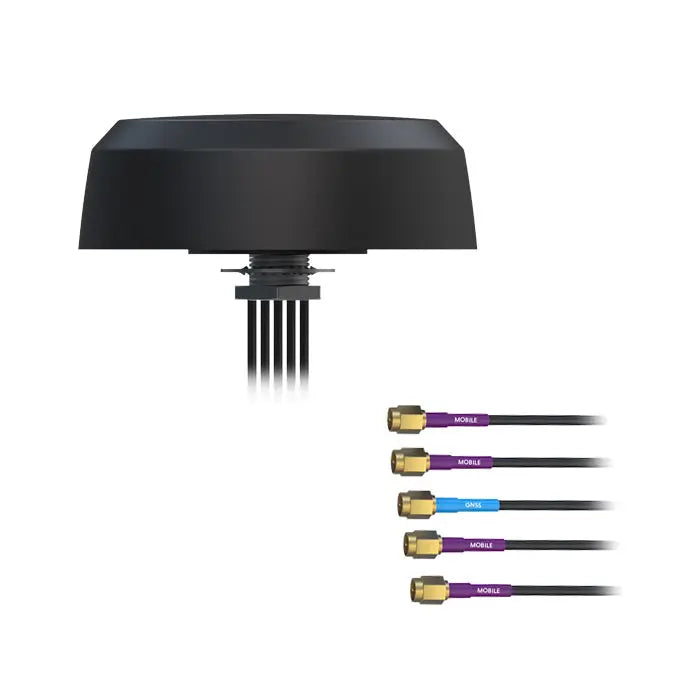

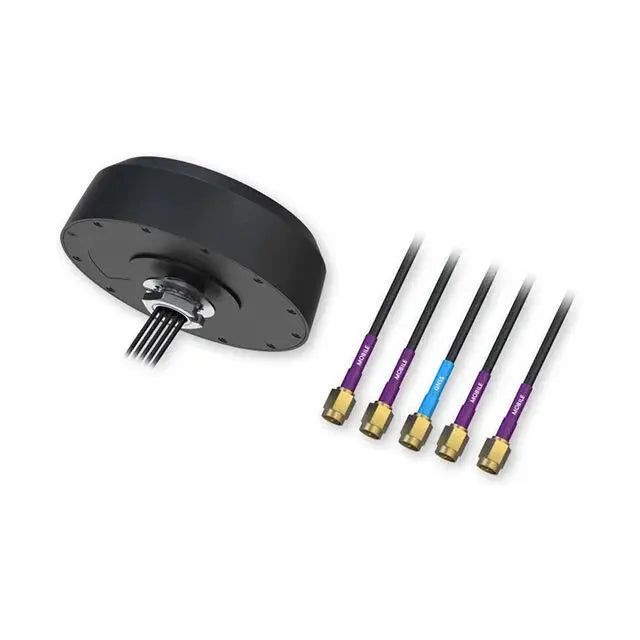

EASYCELL5G-ANT-RTG : Industrial 5G MIMO Roof Mount Antenna GNSS 4x4

EtherWAN EASYCELL5G-ANT-RTG industrial 5G 4x4 MIMO roof mount antenna with GNSS improves the performance and reliability of your industrial wireless network. Designed specifically for the EtherWAN EASYCELL5G industrial wireless router, this rugged roof-mount antenna combines four high-performance 5G/LTE 4x4 MIMO antennas with an integrated GNSS (GPS) antenna in a single low-profile enclosure.

Built for demanding outdoor and mobile applications, the EASYCELL5G-ANT-RTG delivers reliable cellular connectivity, accurate positioning, and long-term durability. Its weatherproof housing, long pre-installed cables, and simple screw-mount installation make it an ideal solution for vehicles, transportation systems, utility equipment, remote monitoring, and industrial IoT deployments.

• Integrated (4) 5G/LTE MIMO antenna plus (1) GNSS antenna
• Wide cellular frequency coverage from 600 MHz to 6000 MHz
• High-performance GNSS receiver supporting 1164–1189 MHz and 1559–1606 MHz
• Four SMA Male connectors for cellular plus one SMA Male connector for GNSS
• Low-profile roof-mount design with secure M27 threaded mounting
• 3-meter (9.8 ft) cables simplify installation in vehicles and equipment cabinets
• Rugged IP67/IP69K-rated enclosure after installation for harsh outdoor environments
• Hardened operating temperature range from-40°C to 85°C (-40°F to 185°F)
• RoHS compliant

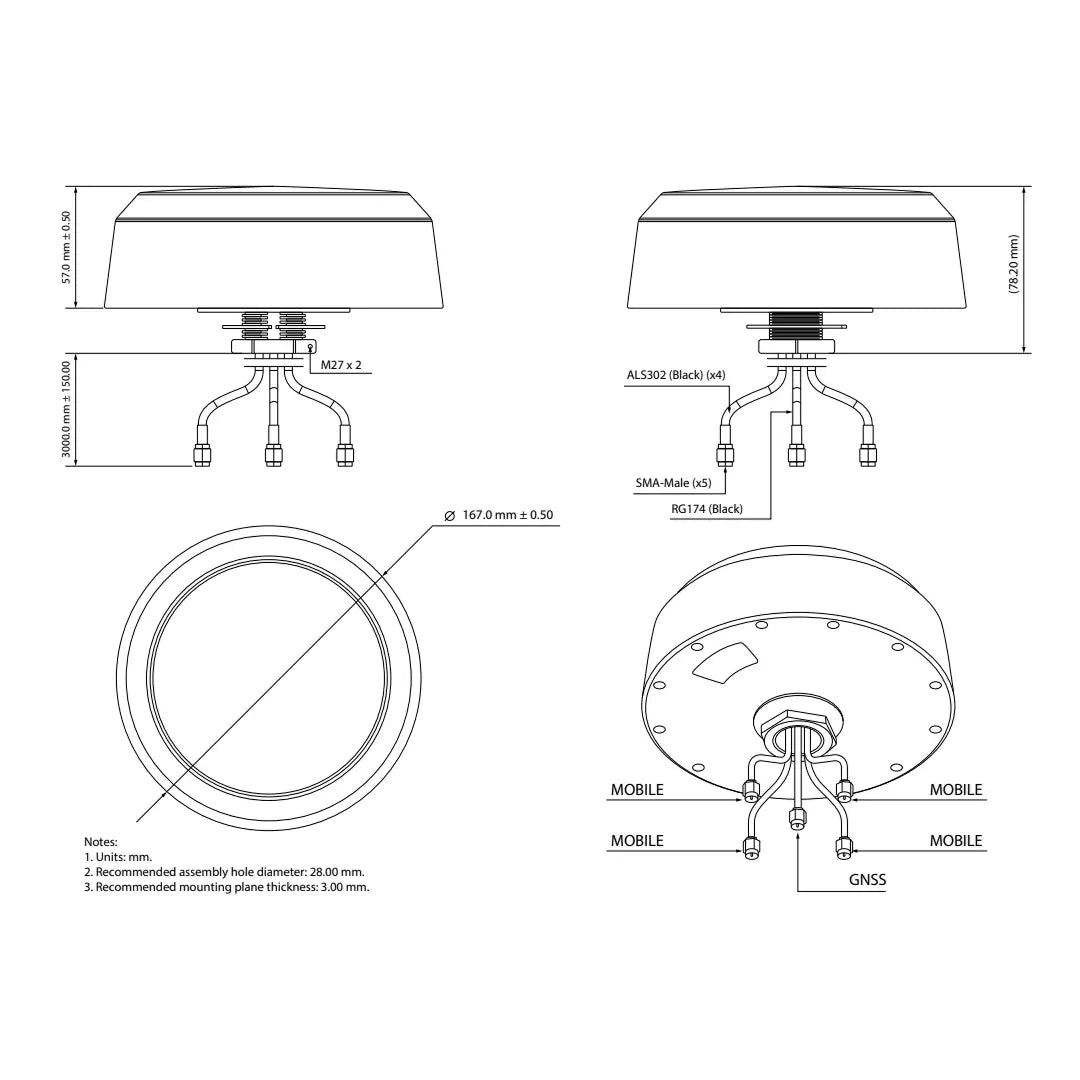

Dimensions
167mm x 167mm x 57mm
6.57" x 6.57" x 2.24"

Weight
.78kg (1.72lbs)

Operating Temperature
-40°C to 85°C (-40°F to 185°F)

Click here for additional information

For detailed specifications, download the datasheet here
