EL100C Commercial Fiber Media Converter (SC) 2km

EL100C Ethernet to Multimode Fiber Media Converter

10/100 Mbps copper Ethernet to 100 Mbps multimode fiber with SC connectors and up to 2km reach.

Commercial operating temperature: 0 to 45°C (32 to 113°F).

The EtherWAN EL100C connects copper Ethernet equipment to multimode fiber through one RJ45 Ethernet port and one fixed SC fiber port. Its 1310nm optics support links up to 2km, making it suitable for extending Fast Ethernet connections between equipment rooms or buildings.

Designed for climate-controlled commercial installations, this unmanaged converter provides straightforward Ethernet-to-fiber connectivity. DIP switches let you configure Link-Fault-Pass-Through, duplex settings, and store-and-forward or converter mode to suit the connection.

Key Features

• Fast Ethernet connectivity: One RJ45 port supports 10/100 Mbps copper Ethernet, with a 100BASE-FX fiber port.
• Up to 2km multimode reach: Uses 1310nm optics with 50/125µm or 62.5/125µm multimode fiber.
• Fixed SC fiber connection: Separate transmit and receive connections, with no SFP module required.
• Link-Fault-Pass-Through: Configurable LFPT passes link failures through the connection to help connected equipment detect a disruption.
• Selectable operating modes: DIP switches support store-and-forward or converter mode and configurable duplex settings.
• Automatic cable detection: Auto MDI/MDI-X supports copper connections without requiring a crossover cable.
• Commercial operation: Rated from 0 to 45°C (32 to 113°F).
• Compact aluminum enclosure: Supports wall mounting or installation in the compatible EMC1600 chassis.
• Included power adapter: Supplied with a 12VDC external power adapter.

Applications

• Extending Fast Ethernet connections between commercial buildings.
• Connecting equipment rooms over existing multimode fiber.

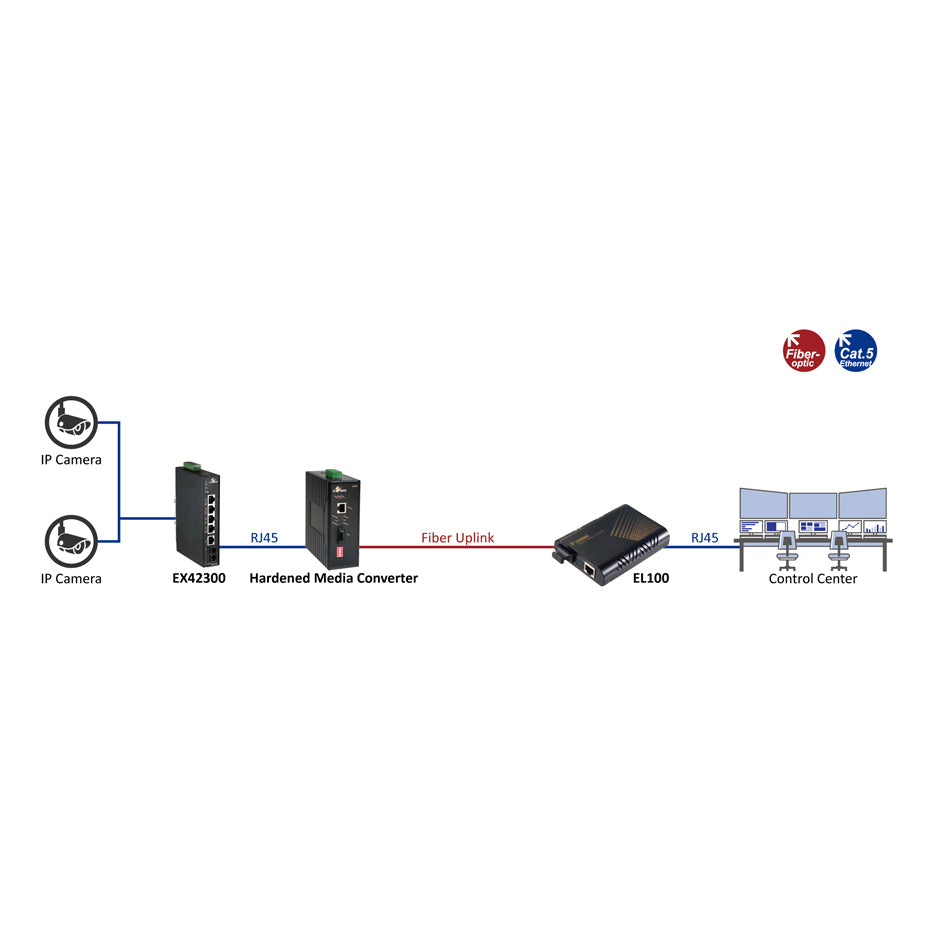

• Linking compatible surveillance equipment to a central network.
• Converting copper Ethernet to fiber in business or campus networks.

Common Questions

What is the difference between the EL100C and EL100T?
Both support 10/100 Mbps copper Ethernet to 100 Mbps multimode fiber with up to 2km reach. The EL100C uses SC connectors, while the EL100T uses ST connectors. Choose the model that matches your fiber connections.

Does the EL100C require an SFP module?
No. Its fiber optics and SC connections are built in. Use a compatible 100BASE-FX multimode device at the other end of the fiber link.

Is the power adapter included?
Yes. A 12VDC external power adapter is included for standalone operation. The optional EMC1600 media converter rack is sold separately.

Group up to 16 commercial fiber media converters together with the EtherWAN EMC1600 media converter rack: EMC1600

Casing Material
Aluminum

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
Wall mounting, or in EMC1600 Chassis System

Input
12VDC

Power Consumption
1.92W max. 0.16A@12VDC
