EL100T Commercial Fiber Media Converter (ST) 2km

EL100T Fast Ethernet to Multimode Fiber Converter

10/100 Mbps Ethernet-to-fiber conversion with ST connectors, 1310nm optics, and up to 2km reach.

Commercial operating temperature: 0 to 45°C (32 to 113°F).

The EtherWAN EL100T connects copper Ethernet equipment to a multimode fiber network. It provides one 10/100BASE-TX RJ45 port and one 100BASE-FX fiber port with separate ST transmit and receive connections.

Designed for equipment rooms and commercial networks, it supports 50/125µm or 62.5/125µm multimode fiber. Choose this model when your installation requires ST connectors and a compatible 100 Mbps fiber connection.

Key Features

• Ethernet-to-fiber conversion: Connects 10/100 Mbps copper Ethernet to 100 Mbps fiber.
• ST multimode connection: Supports two fiber strands with up to 2km reach and 1310nm optics.
• Simple installation: Plug-and-play operation with automatic MDI/MDIX.
• Link-Fault-Pass-Through: Optional LFPT helps connected equipment detect a link failure.
• Configurable operation: DIP switches select processing mode, LFPT, and duplex settings.
• Commercial temperature range: Operates from 0 to 45°C (32 to 113°F).
• Flexible mounting: Supports wall mounting or installation in an EMC1600 chassis.
• Included power adapter: Uses 12VDC, with maximum power consumption of 1.92W.

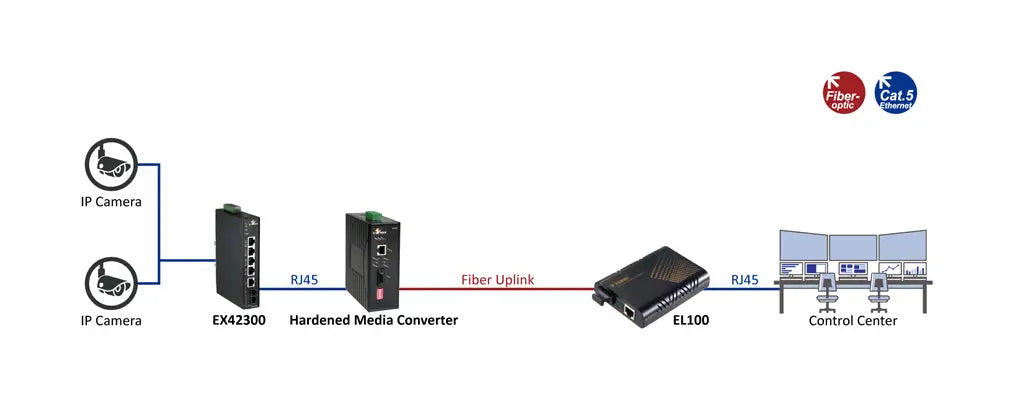

Applications

• Connecting copper Ethernet equipment to existing ST multimode fiber.
• Extending Fast Ethernet links between equipment rooms.
• Centralizing compatible fiber connections in an EMC1600 rack.

Common Questions

Does the EL100T support Gigabit Ethernet?
No. Its copper port supports 10/100 Mbps, and its fiber port operates at 100 Mbps.

What fiber cable does the EL100T require?
Use duplex 50/125µm or 62.5/125µm multimode fiber with ST connectors at the EL100T. Choose connectors at the other end to match your equipment. Fiber cable is not included.

Are the power adapter and rack included?
The 12VDC power adapter is included. The EMC1600 rack is sold separately and accommodates up to 16 compatible converters.

Group up to 16 commercial fiber media converters together with the EtherWAN EMC1600 media converter rack: EMC1600

Casing Material
Aluminum

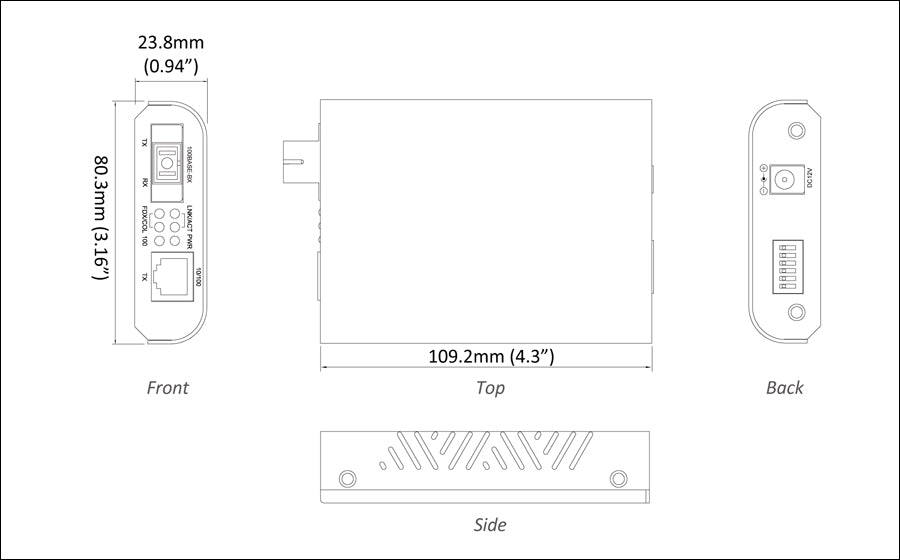

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
Wall mounting, or in EMC1600 Chassis System

Input
12VDC

Power Consumption
1.92W max. 0.16A@12VDC
