EL2211-31U Commercial Gigabit Fiber Media Converter (SC) 550m

EL2211-31U Commercial Gigabit Fiber Media Converter (SC) 550m

SKU:EL2211-31U

Regular price $240.93 USD
Regular price Sale price $240.93 USD
Sale Sold out
Shipping calculated at checkout.

EL2211-31U Gigabit Ethernet to Multimode Fiber Converter

10/100/1000 Mbps copper Ethernet to 1 Gbps multimode fiber, with duplex SC connectors, 850nm optics, and up to 550m reach.

The EtherWAN EL2211-31U connects copper Ethernet equipment to a multimode fiber network. It provides one RJ45 Ethernet port and one fixed duplex SC fiber connection, making it suitable for connecting compatible switches, workstations, and other network equipment across commercial buildings and campuses.

Designed for climate-controlled installations, this unmanaged converter supports straightforward setup with copper auto-negotiation and automatic MDI/MDI-X detection. Its compact aluminum enclosure supports desktop, wall, or compatible rack installation.

Key Features

  • Gigabit fiber connectivity: Converts 10/100/1000 Mbps copper Ethernet to a 1000BASE-SX fiber connection.
  • 550m multimode reach: Supports fiber connections up to 550m, subject to the installed fiber and optical losses.
  • Duplex SC connection: Uses separate transmit and receive fiber strands, with fixed 850nm optics.
  • Automatic copper configuration: Supports auto-negotiation and automatic MDI/MDI-X detection.
  • Link-Fault-Pass-Through: Configurable LFPT helps connected equipment detect a link failure.
  • Jumbo frame support: Supports frames up to 9K bytes.
  • Commercial operation: Rated from 0 to 50°C (32 to 122°F).
  • Flexible installation: Compact aluminum housing for desktop, wall, or compatible rack mounting.
  • Included power adapter: Supplied with a 12VDC external power adapter.

Applications

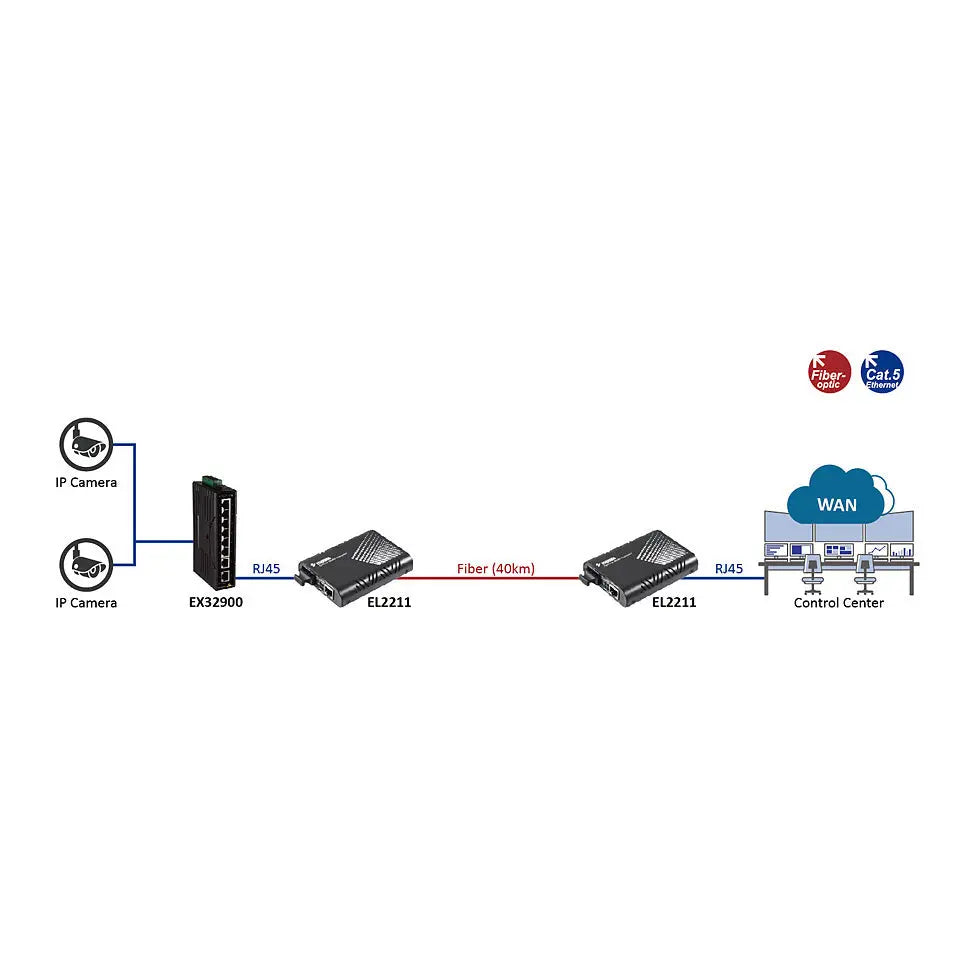

  • Connecting network equipment across commercial buildings and campuses.
  • Extending Ethernet connections between IT rooms and remote network locations.
  • Connecting compatible IP surveillance networks over multimode fiber.

Common Questions

What fiber cable does the EL2211-31U require?
Use a duplex multimode fiber cable with SC connectors at the converter. The connectors at the other end must match your equipment, which must support a compatible 1000BASE-SX fiber connection. Fiber cable is sold separately.

Does the EL2211-31U require a separate SFP module?
No. Its SC fiber connectors and optical transceiver are built into the converter.

Is the power adapter included?
Yes. A 12VDC external power adapter is included. The optional EMC1600 media converter rack is sold separately.

Group up to 16 commercial fiber media converters together with the EtherWAN EMC1600 media converter rack: EMC1600

Casing Material
Aluminum

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.30" x 0.94"

Weight
0.15kg (0.33lbs)

Installation Type
EMC1600 media converter rack, wall, desktop

Fiber Media Converter

Click here for additional information

For detailed specifications, download the datasheet here

123 in stock

View full details

Collapsible content

More Information

POE TYPE: None
POWER INPUT: 12VDC
ALARM RELAY: No
MOUNT TYPE: EMC1600 Chassis, Wall, Desktop
REDUNDANT POWER: No
PRODUCT CLASS: Commercial
OPERATING TEMPERATURE RANGE: 0°C to 50°C (32 to 122°F)
MANAGEMENT TYPE: Unmanaged
FIBER TYPE: Multimode - 1000BASE-SX
FIBER PORTS: 1
FIBER DISTANCE: 550m
FIBER/SFP CONNECTOR: SC
10/100/1000 PORTS: 1
INDUSTRY STANDARDS: UL 60950-1
