EL2211-41U Commercial Gigabit Fiber Media Converter (SC) 2km

EL2211-41U Ethernet to Multimode Fiber Media Converter

10/100/1000 Mbps Ethernet to 1 Gbps multimode fiber with SC connectors and up to 2km reach.

Commercial operation from 0 to 50°C (32 to 122°F).

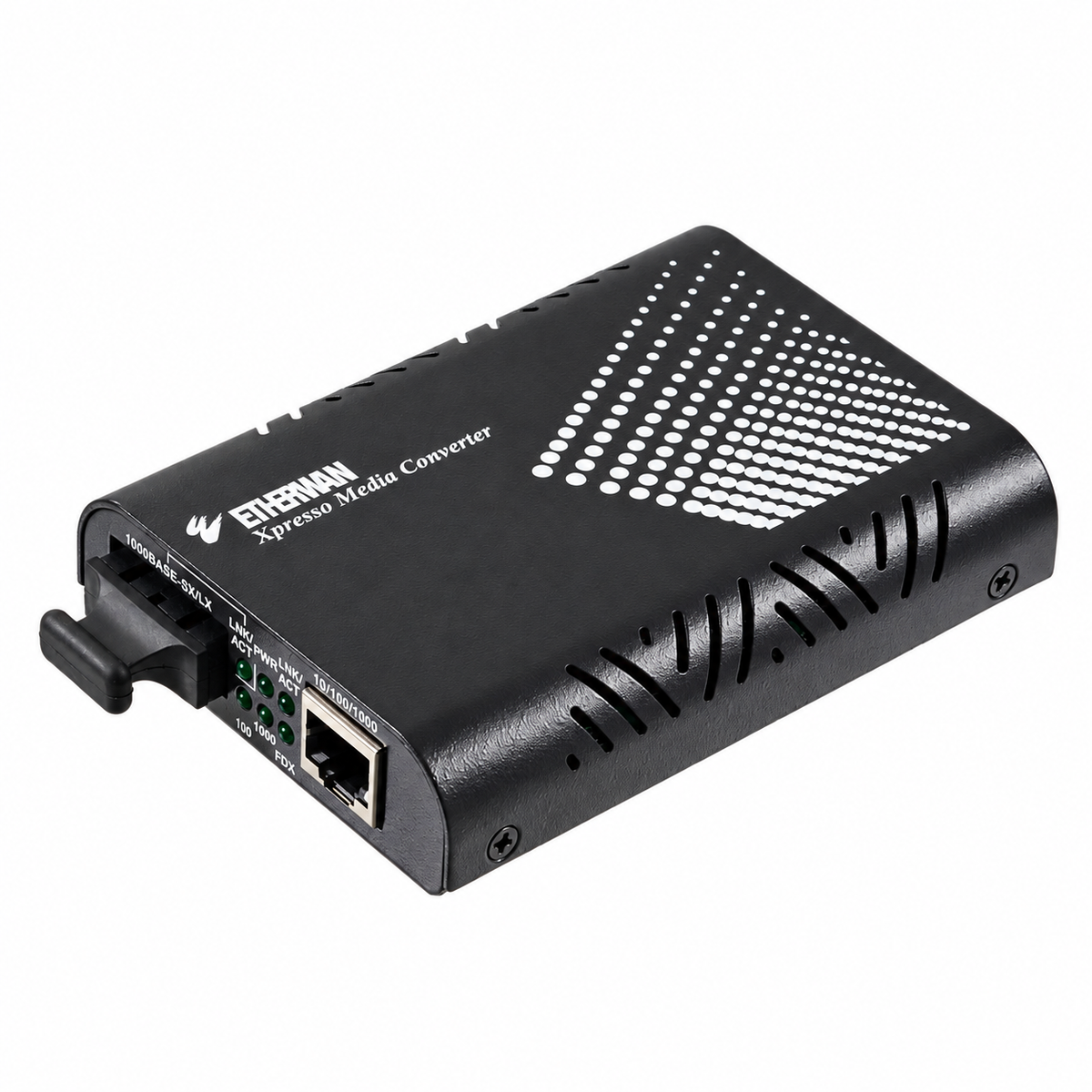

The EtherWAN EL2211-41U connects copper Ethernet equipment to a multimode fiber network. It combines one RJ45 Ethernet port with a built-in SC fiber port operating at 1310nm, providing fiber connectivity for commercial buildings and enterprise networks.

The copper port automatically negotiates 10/100/1000 Mbps connections. Selectable Link Fault Pass Through (LFPT) helps connected equipment detect a failed link, while support for jumbo frames up to 9K bytes accommodates larger Ethernet frames.

Key Features

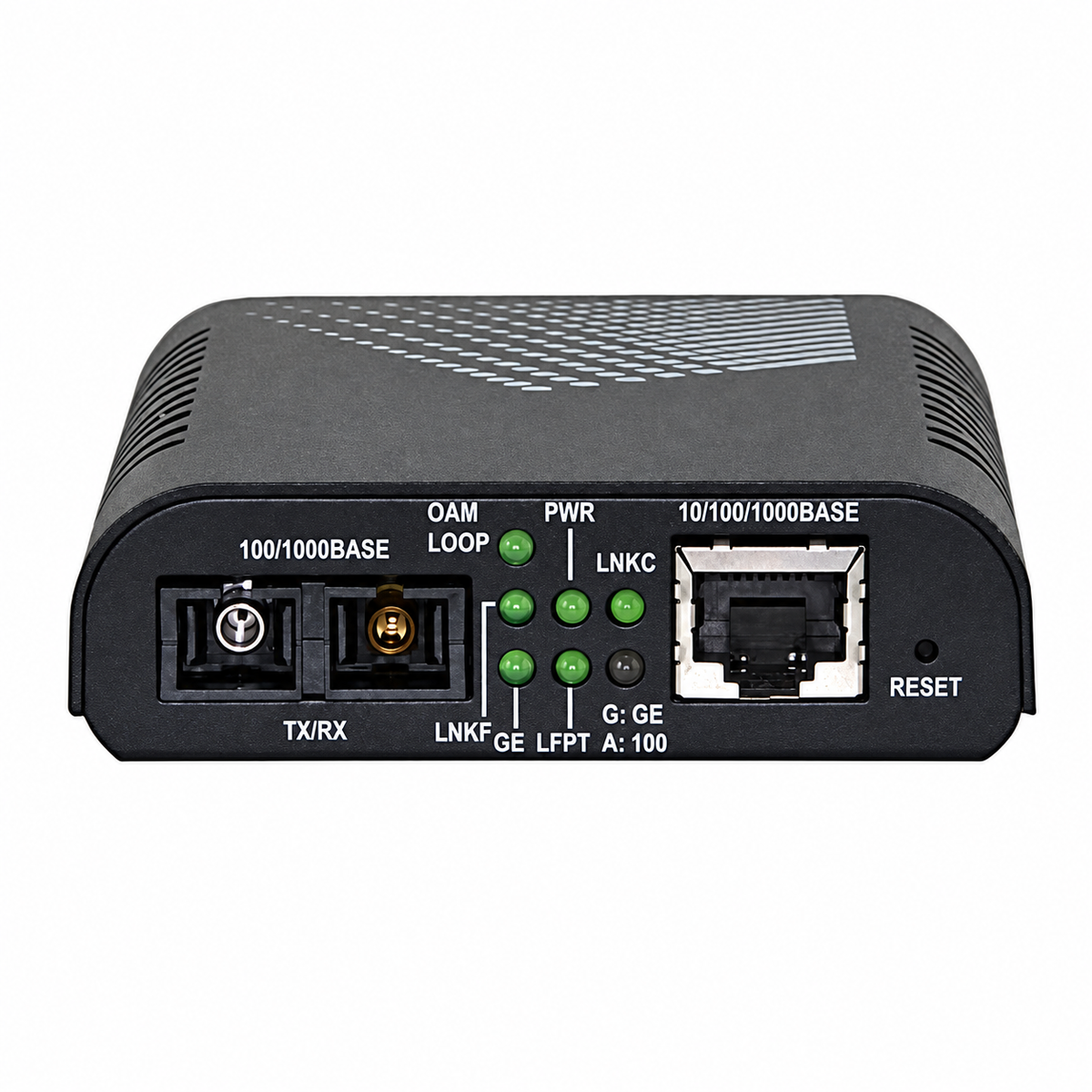

• Gigabit connectivity: One 10/100/1000 Mbps RJ45 port and one 1 Gbps SC fiber port.
• 2km multimode reach: Extends compatible fiber connections up to 2km, subject to the link’s optical losses.
• Built-in fiber optics: Fixed 1310nm SC interface, with no separate SFP module required.
• Link fault detection: DIP-switch selectable LFPT passes a link failure indication to connected equipment.
• Jumbo frame support: Supports Ethernet frames up to 9K bytes.
• Automatic copper connection: Auto-negotiation and auto MDI/MDIX simplify Ethernet setup.
• Commercial operation: Rated from 0 to 50°C (32 to 122°F).

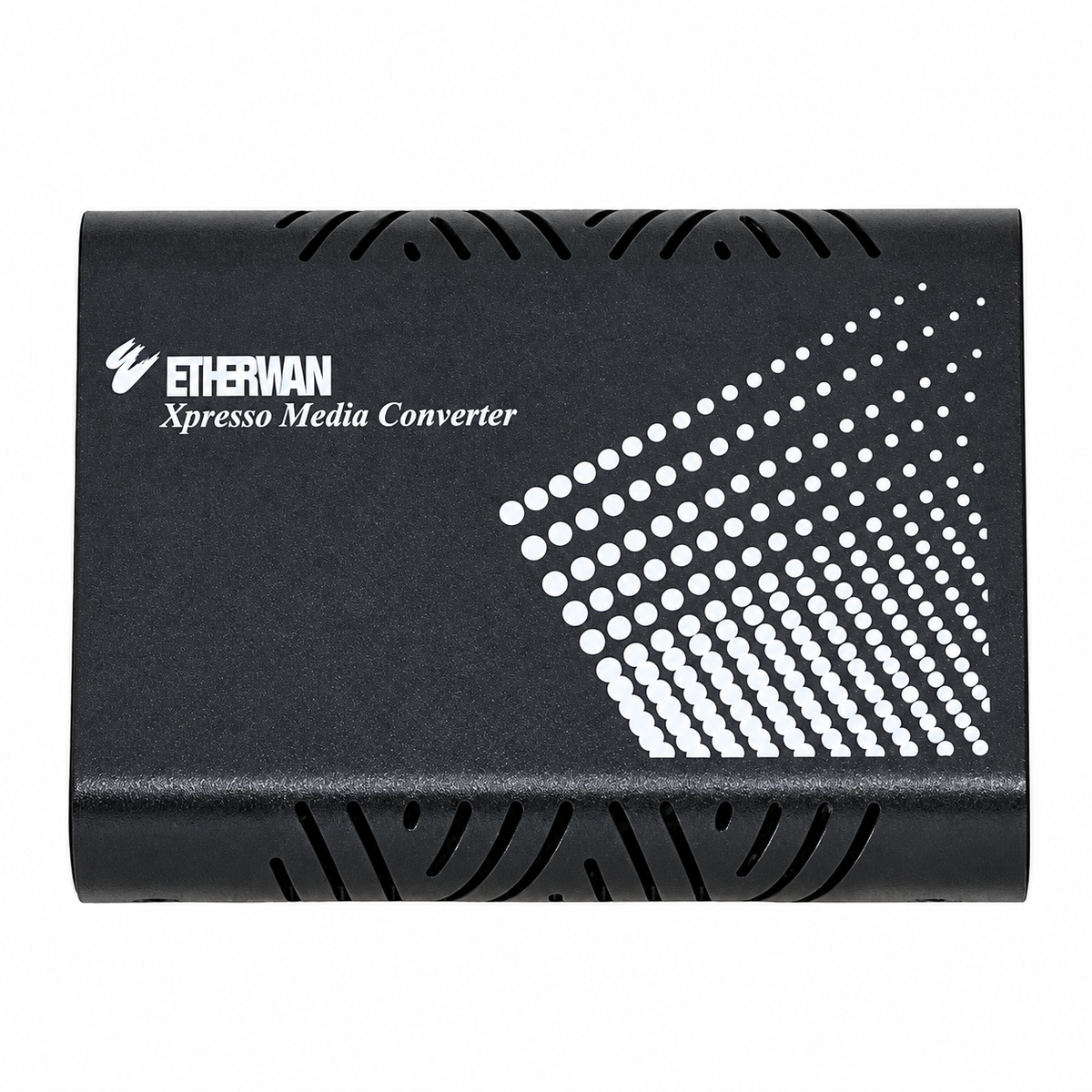

• Compact aluminum housing: Supports wall mounting or installation in an optional EMC1600 chassis.

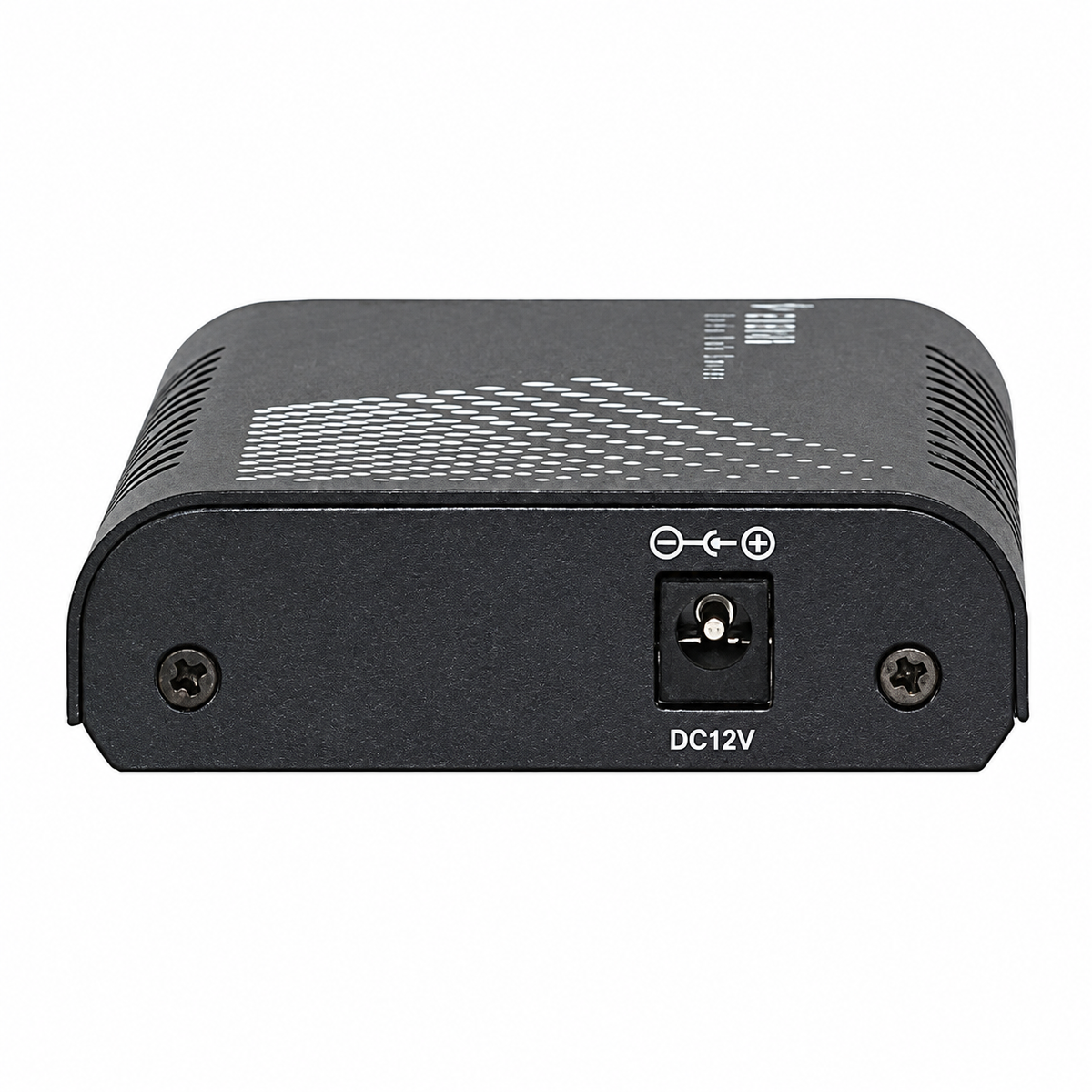

• Included power adapter: Supplied with a 12VDC power adapter.

Applications

• Extending Ethernet connections over multimode fiber in commercial buildings.
• Connecting network equipment across enterprise and campus facilities.
• Linking Ethernet equipment in IT rooms and telecommunications installations.
• Connecting IP surveillance equipment through a compatible fiber network.

Common Questions

How does the EL2211-41U differ from the EL2211-31U?
Both provide Gigabit multimode fiber connectivity with SC connectors. The EL2211-41U uses 1310nm optics with up to 2km reach, while the EL2211-31U uses 850nm optics with up to 550m reach. Choose the model that matches your fiber link and the optics at the other end.

Does the EL2211-41U need an SFP module?
No. Its SC fiber interface is built in. The equipment at the other end must have compatible Gigabit multimode optics.

Is the power adapter included?
Yes. A 12VDC power adapter is included for standalone operation.
