EL2315 Commercial Fiber Media Converter (Dual Rate SFP)

EL2315 Ethernet to SFP Fiber Media Converter

10/100/1000 Mbps copper Ethernet to 100 Mbps or 1 Gbps fiber through a selectable dual rate SFP slot.

Commercial operating temperature: 0 to 50°C (32 to 122°F).

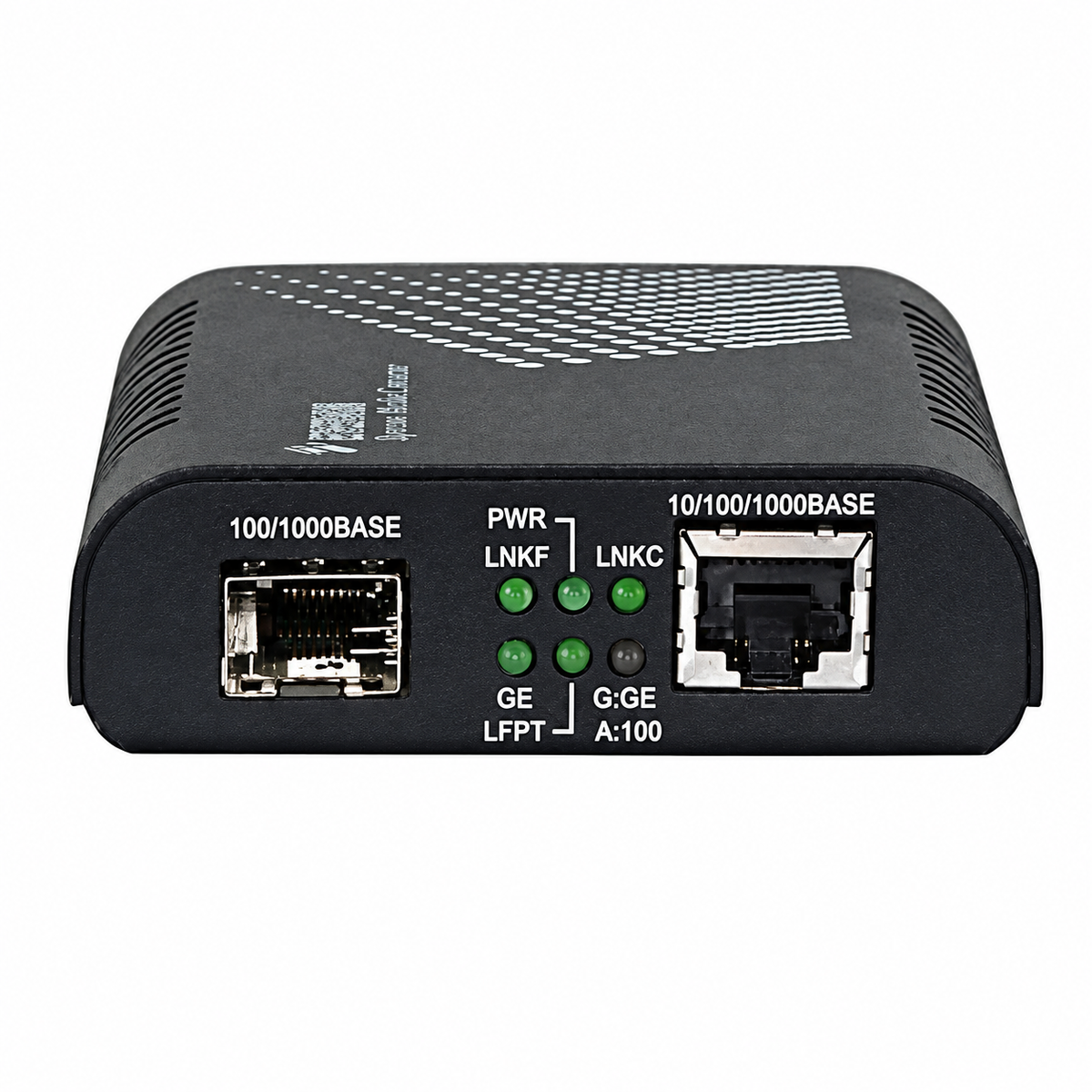

The EtherWAN EL2315 connects copper Ethernet equipment to a fiber network using a compatible SFP module. Its one RJ45 Ethernet port and one dual rate SFP slot provide flexibility to select the fiber type and reach needed for your installation.

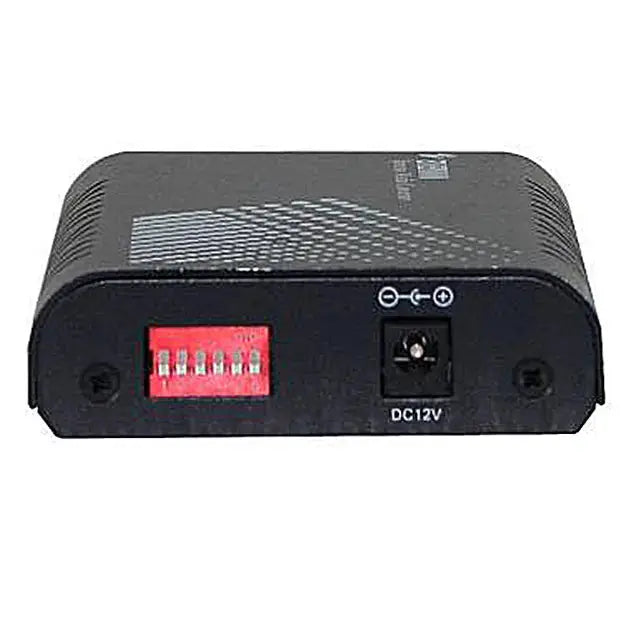

Designed for climate-controlled commercial environments, this unmanaged converter supports copper auto-negotiation, automatic MDI/MDI-X detection, and configurable Link-Fault-Pass-Through. A DIP switch selects the SFP port’s operating speed to match a compatible 100 Mbps or 1 Gbps fiber module.

Key Features

• Dual rate SFP slot: Supports compatible 100 Mbps or 1 Gbps fiber modules, with speed selected by DIP switch.
• Flexible fiber selection: Choose a compatible SFP for your required fiber type, wavelength, connector, and distance.
• Copper Ethernet connectivity: One RJ45 port supports 10/100/1000 Mbps Ethernet.
• Automatic copper configuration: Supports auto-negotiation and automatic MDI/MDI-X detection.
• Link-Fault-Pass-Through: Configurable LFPT passes a link failure through the connection to help connected equipment detect it.
• Jumbo frame support: Supports frames up to 9K bytes during Gigabit operation.
• Commercial operation: Rated from 0 to 50°C (32 to 122°F).

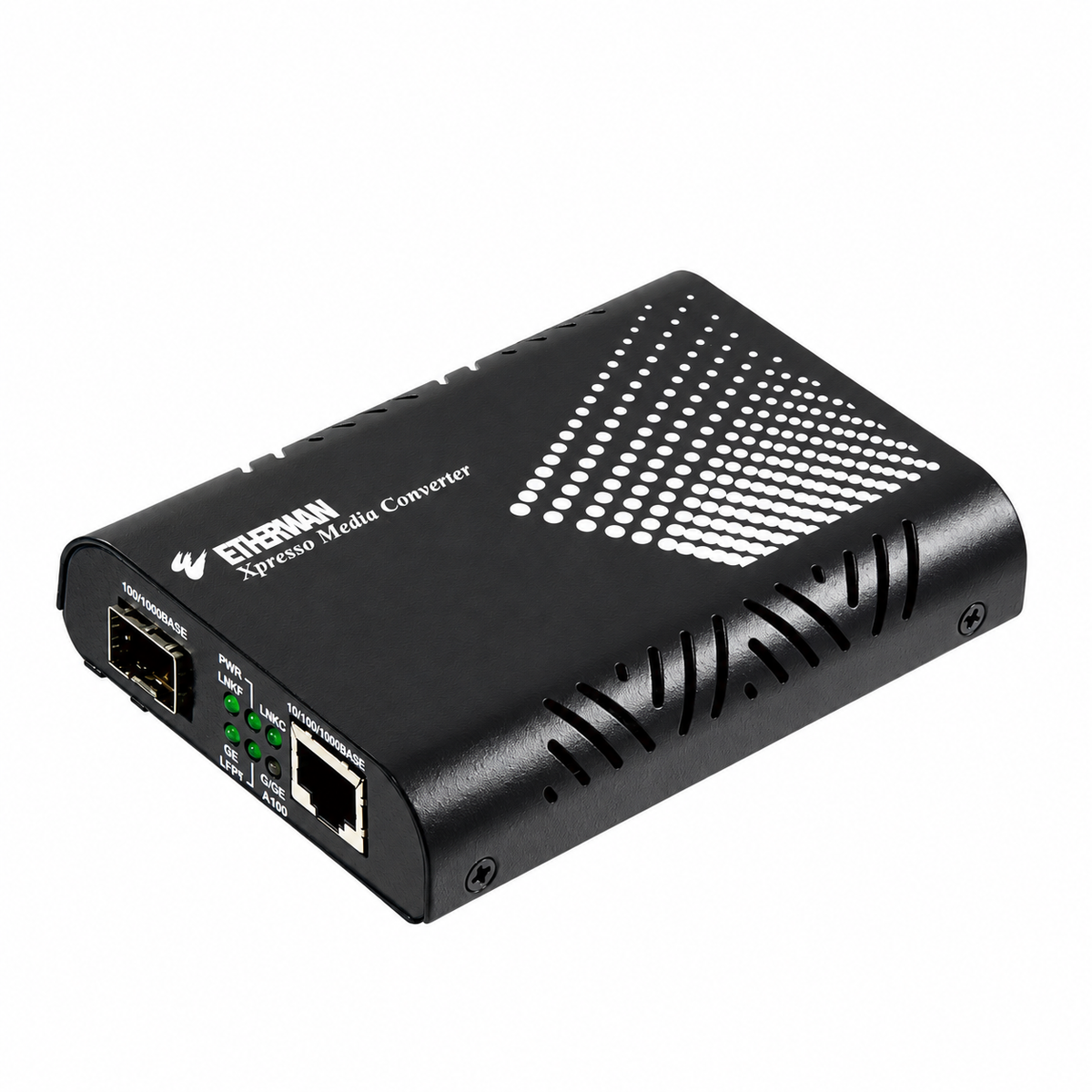

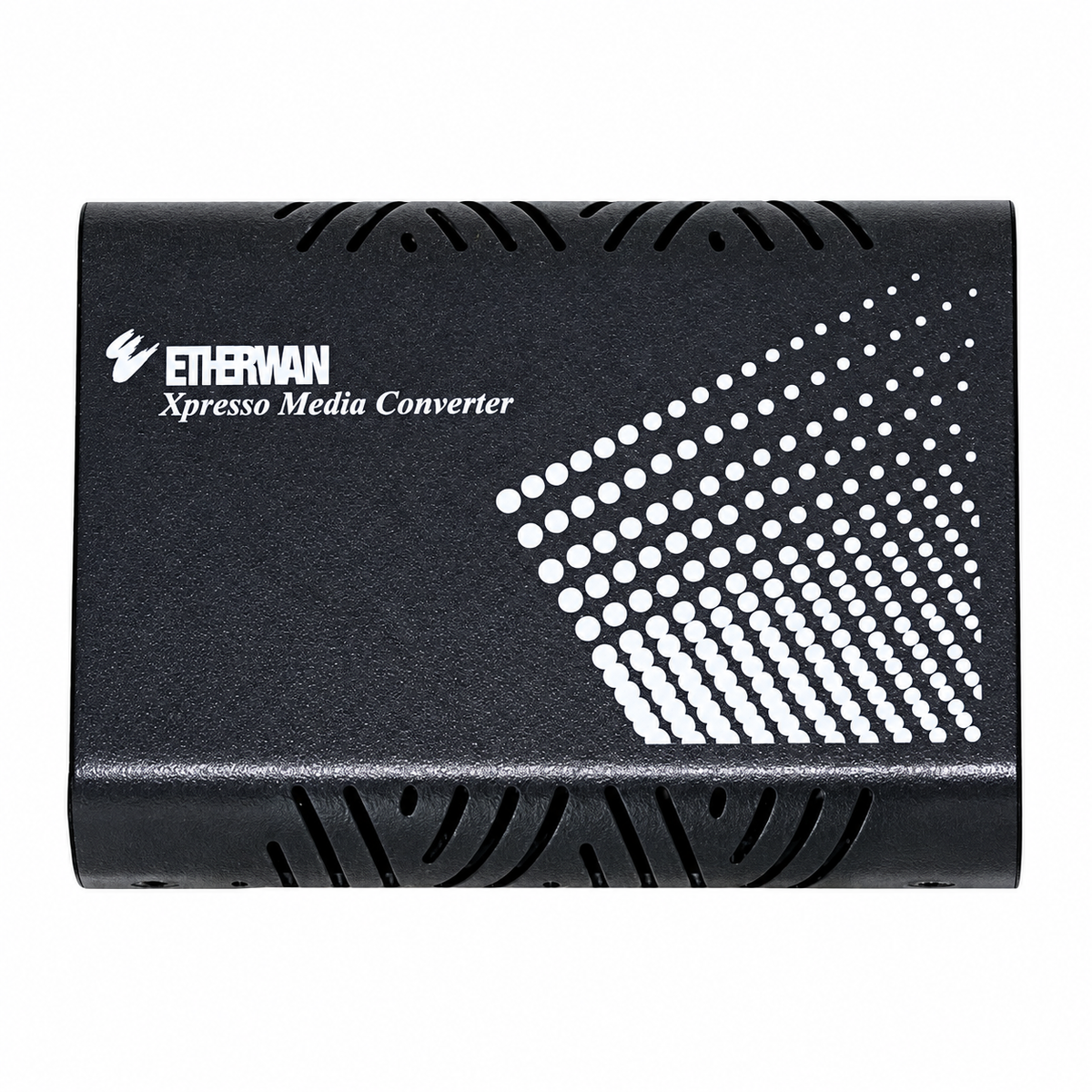

• Compact aluminum enclosure: Supports wall mounting or installation in the compatible EMC1600 chassis.

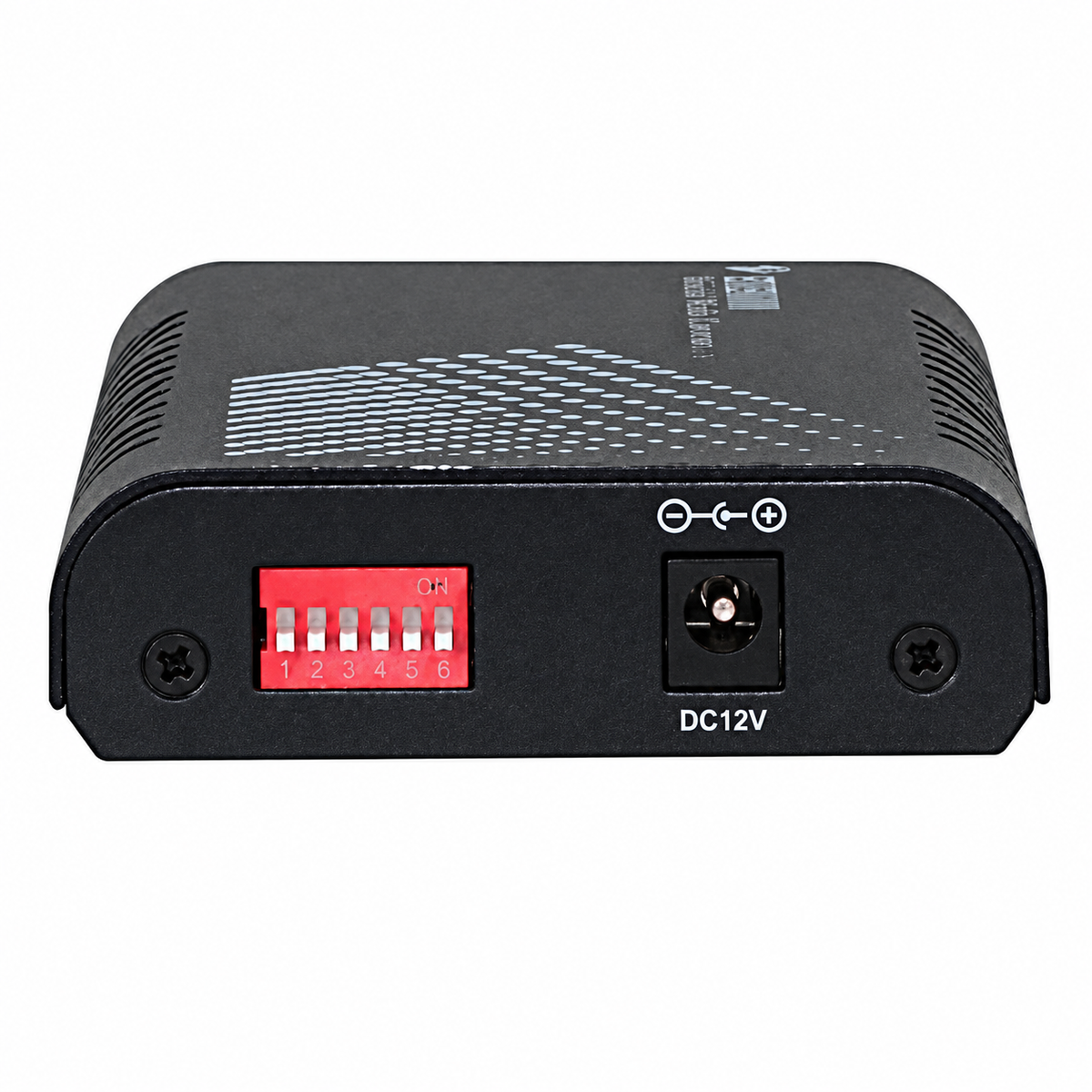

• Included power adapter: Supplied with a 12VDC external power adapter.

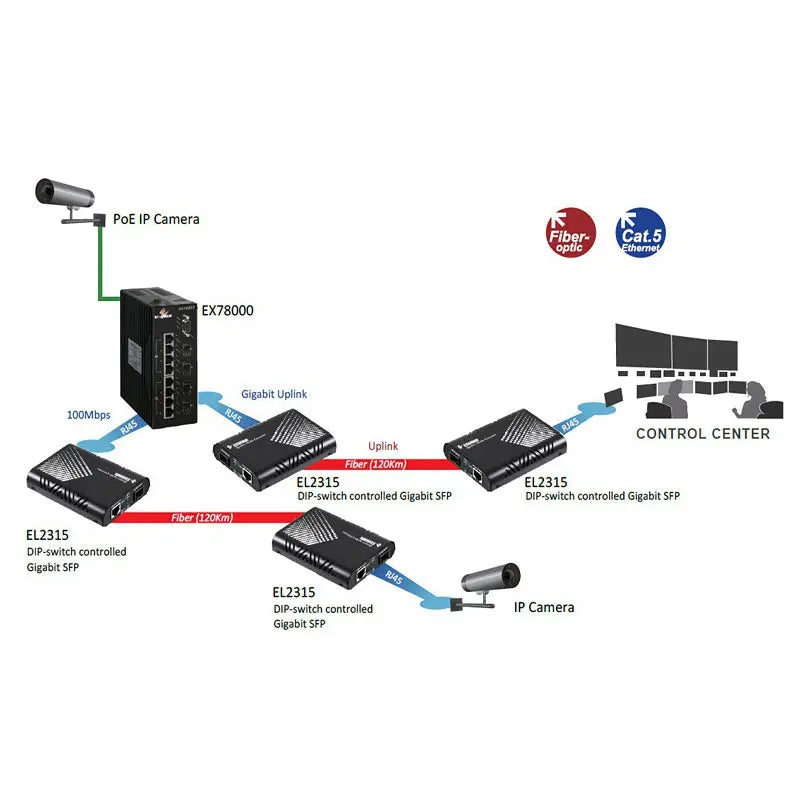

Applications

• Connecting commercial Ethernet equipment to existing fiber networks.
• Fiber links between equipment rooms or buildings, using an SFP matched to the installation.
• Connecting compatible surveillance networks over fiber.
• Supporting either Fast Ethernet or Gigabit fiber equipment with the appropriate SFP and port setting.

Common Questions

Is an SFP module included?
No. A compatible SFP module is required and sold separately. Select a 100 Mbps or 1 Gbps fiber SFP that matches your fiber type, required distance, and equipment at the other end.

Can the EL2315 use both multimode and single-mode fiber?
Yes, with the appropriate compatible SFP module. The selected module determines the fiber type, connector, wavelength, and maximum reach. Set the converter’s SFP speed DIP switch to match the module.

Is the power adapter included?
Yes. A 12VDC external power adapter is included. The optional EMC1600 media converter rack is sold separately.

Group up to 16 commercial fiber media converters together with the EtherWAN EMC1600 media converter rack: EMC1600

Casing
Aluminum Case

Dimensions
80.3mm x 109.2mm x 23.8mm (W x D x H)
3.16" x 4.3" x 0.94"

Weight
150g (0.33lbs.)

Installation
Wall mounting
