EL8020-V1E Industrial Dual Rate SFP Fiber Media Converter

EL8020-V1E Industrial Dual Rate SFP Fiber Media Converter

SKU:EL8020-V1E

Regular price $360.73 USD
Regular price Sale price $360.73 USD
Sale Sold out
Shipping calculated at checkout.

EL8020-V1E Hardened Ethernet to SFP Fiber Media Converter

10/100/1000 Mbps Ethernet to 100 Mbps or 1 Gbps SFP fiber.

Hardened operation from −40 to 75°C (−40 to 167°F). SFP module sold separately.

The EtherWAN EL8020-V1E connects copper Ethernet equipment to fiber networks in demanding industrial installations. It combines one RJ45 Ethernet port with a dual rate SFP slot, allowing you to select a compatible fiber module for your network’s speed, fiber type, and required distance.

Its compact aluminum housing resists shock, vibration, and electrical interference. Redundant DC power inputs, a configurable alarm relay, and Link Fault Pass Through (LFPT) help connected equipment identify power or link failures.

Key Features

  • Flexible Ethernet connectivity: One 10/100/1000 Mbps RJ45 port and one SFP slot supporting 100 Mbps or 1 Gbps fiber modules.
  • Selectable fiber connection: Choose a compatible SFP module to match your fiber type, connector, wavelength, and distance.
  • Hardened operation: Rated from −40 to 75°C (−40 to 167°F).
  • Industrial durability: Compact aluminum IP30 housing with resistance to shock, vibration, and electrical interference.
  • Redundant DC power: Two terminal-block power inputs accepting 12–48VDC.
  • Fault monitoring: Configurable relay alarm provides indication of power or link failure.
  • Link Fault Pass Through: Passes a copper or fiber link failure indication to connected equipment.
  • Jumbo frame support: Supports frames up to 10K bytes.
  • DIP switch controls: Configure LFPT, copper and fiber link alarms, and fiber auto-negotiation.
  • Power protection: Includes overload current and reverse polarity protection.
  • DIN-rail installation: Compact design for mounting inside industrial equipment cabinets.

Applications

  • Fiber connections between industrial Ethernet equipment and network switches.
  • Factory automation and industrial control cabinets.
  • Transportation, utility, and surveillance networks.
  • Connections between buildings or remote equipment locations using suitable SFP modules and fiber.

Common Questions

Is an SFP module included?
No. Select a compatible 100 Mbps or 1 Gbps fiber SFP separately. The module determines the fiber type, connector, wavelength, and maximum reach. Use compatible optics at the other end, and select a hardened module when the installation requires the converter’s full temperature range.

Is a power supply included?
No. The EL8020-V1E requires an external 12–48VDC power source connected to its terminal block. Compatible 24VDC power supplies are available separately. Wiring from the power supply to the converter is also required.

Can it be installed outdoors?
Yes, inside a suitable protective cabinet or enclosure. Its hardened temperature rating supports outdoor cabinet installations, but the IP30 housing must be protected from rain and moisture.

Suggested Power Supplies

Hardened 24VDC power supply EPOW-24-60
DIN-rail 24VDC power supply EPHX-24-60
(Power supplies are sold separately)

Casing
Aluminum, IP30

Dimensions
35.8mm x 90mm x 100mm (W x D x H)
1.41" x 3.54" x 3.94"

Weight
0.23Kg (0.51lbs.)

Power Input
12–48VDC, redundant DC terminal-block inputs

Power Consumption
1.44W maximum

Installation
DIN rail

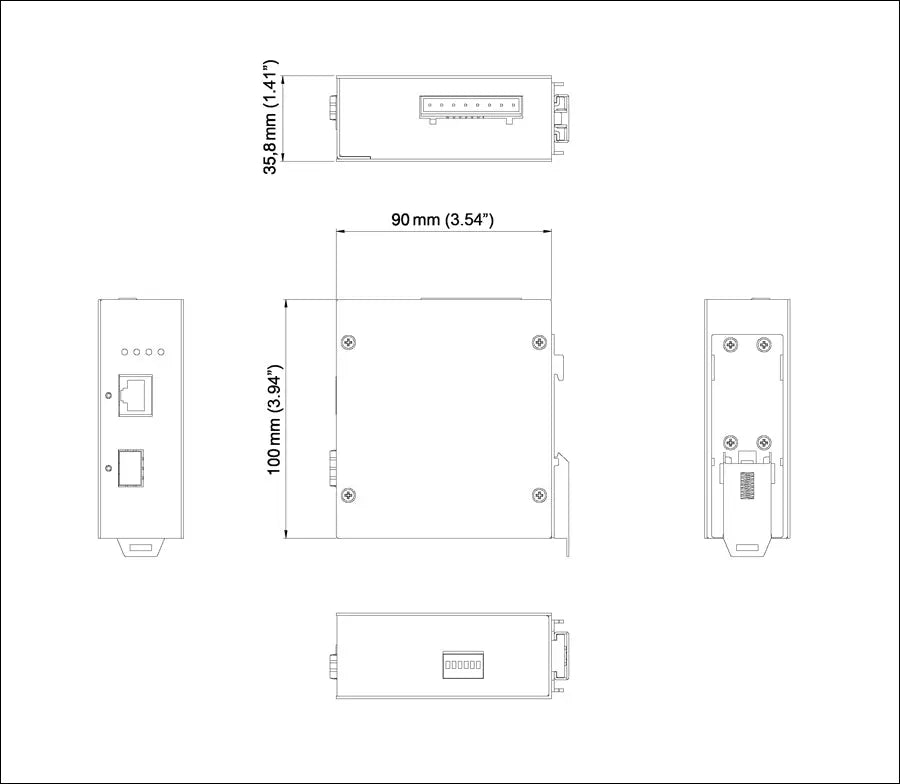

EtherWAN EL8020-V1E dimensional drawing, 35.8mm wide x 90mm deep x 100mm high

Click here for additional information

For detailed specifications, download the datasheet here

69 in stock

View full details

Collapsible content

More Information

POE TYPE: None
POWER INPUT: 12–48VDC, DC terminal block
ALARM RELAY: Yes
MOUNT TYPE: DIN-Rail
REDUNDANT POWER: Yes
PRODUCT CLASS: Industrial/Hardened
OPERATING TEMPERATURE RANGE: -40 to 75°C (-40 to 167°F)
MANAGEMENT TYPE: Unmanaged
FIBER TYPE: Depends on selected 100 Mbps or 1 Gbps SFP
FIBER PORTS: 1
FIBER DISTANCE: Depends on selected SFP
FIBER/SFP CONNECTOR: SFP slot, connector depends on module
10/100/1000 PORTS: 1
INDUSTRY STANDARDS: UL 61010, EN 50121-4
